The analysis of Norduz Sheep Mandible with DFA and PCA

Document Type : Original Articles

Authors

1 Department of Anatomy, Faculty of Veterinary Medicine, Kafkas University, Kars-36100, Turkey

2 Department of Surgery, Faculty of Veterinary Medicine, Kafkas University, Kars-36100, Turkey

10.32592/ARI.2025.80.1.139

Abstract

Norduz sheep are known as a variety of Akkaraman sheep bred in the Norduz region, which is located within the borders of the Gürpınar district of Van province. Norduz sheep are bred only in the Norduz region, adapt to the harsh climate of the Eastern Anatolia region, and show unique performance indicators that distinguish this breed from other breeds.
In this study, the mandible of Norduz sheep was examined by geometric morphometric method and analyzed. Principal components in multidimensional data sets were determined by Principal Component Analysis. The differences between the samples were determined by Discriminant Function Analysis. For this purpose, study materials were obtained from slaughterhouses in Van. A total of 20 mandibles (10F/10M) were used since analyzes were made in terms of gender. The mandibles were first dissected from the skull. Later, the overlying muscles were dissected. After boiling, they were kept in hydrogen peroxide for 20-30 minutes and the mandibles were bleached. After drying, the mandibles were photographed from the same distance (20 cm). The left lateral sides of the mandibles were used for photographing. Statistical and formal analyzes of these variances were also performed. As a result of the analyzes made, 16 variances were obtained within the scope of principal component analyses. The first three of the variances obtained explained 58,647 of the shape differences. According to the discriminant function analysis, which gave the best results for gender discrimination, the results were very good and individuals were completely separated from each other. In line with these analyzes, information was obtained about the anatomical features and adaptations of the Norduz sheep mandible, and it became an exemplary study in this field.

Keywords


1. Introduction

The Norduz sheep is an Akkaraman sheep breed that was developed in the Norduz region, which is located inside the boundaries of Van province's Gürpınar district ( 1 - 3 ). In addition to being bred only in the Norduz region, the Norduz sheep have proven to be able to adapt to the harsh climate of Eastern Anatolia and have unique performance characteristics that set them apart from other breeds ( 3 ). Numerous studies on Norduz sheep have been written up in scholarly journals ( 3 - 5 ). It is expected that research using geometric morphometric analysis and traditional morphometric approaches ( 6 - 21 ) will add to the body of knowledge regarding gender and figural analysis ( 22 ). Additionally, the study of species-specific patterns and evolutionary processes is made possible by geometric morphometrics. This method uses the coordinates of the points to identify the objects' form and positional differences ( 23 ). Many research on various species and skeletal components have been carried out in recent years in an effort to use geometric morphometrics to explain the sexual dimorphism seen in animal populations ( 24 - 31 ). Three-dimensional bone materials have also been the subject of geometric morphometric investigations in recent years ( 32 ). This study's goal was to use geometric morphometric analysis to clarify the morphological differences between Norduz sheep's male and female mandibles.

2. Materials and Methods

Van slaughterhouses provided the study materials. To perform gender-specific studies, a total of 20 mandibles (10 female and 10 male) were used. First, the mandibles were taken out of the skull. The muscles that covered it were then dissected. The next procedure was to boil the mandibles long enough to guarantee that the muscles were completely removed. After that, the mandibles were bleached by immersing them in hydrogen peroxide for 20 to 30 minutes. The mandibles were shot from the same distance (20 cm) after drying. The left lateral surfaces of the mandibles were photographed. The tpsUtil software, version 1.82, was used to save the photos that were to be used in punctuation as tps files. To mark, the tps file was loaded into the tpsDig (version 2.31) application. Ten specific spots on each mandible were marked using the TpsDig program. The same positions were used to mark each mandible in the photos. To undertake a geometric morphometric analysis, the information about the indicated mandibles was transformed into a text file and entered into MorphoJ (version 1.07a). To find shape changes, a principal component analysis (PCA) was used. After then, the components were arranged according to their percentage of variation. Additionally, form changes were acquired through the use of Discriminant Function Analysis (DFA). Discriminant Function Analysis was used to statistically and formally analyze the differences between the male and female groups.

3. Results

Using the geometric morphometric analysis method, 20 Norduz sheep mandibles (10 females and 10 males) were analyzed in this study. A total of 16 fundamental components with 10 punctuation marks were identified. Of the entire variation among these principal components, 27.49% came from the first principle component (PC1). Of the entire variation, 17.25% was explained by the second principal component (PC2), and 13.91% by the third principal component (PC3). Table 1 displays the findings of the main component analysis. The cumulative and individual variance distributions for 16 of the main component analyses are shown in Figure 1. Together, PC1, PC2, and PC3 explain more than half of the variation, as the graph shows. Additionally, it varies significantly from person to person. A comparison of PC1, PC2, and PC3 was made when performing a principal component analysis of the results. Figure 2 shows the shape variation that was obtained for principal components 1, 2, and 3. The mean shape is represented by the dots. The extensions stand for PC1, PC2, and PC3's upper bounds. Given the significant differences between PC1 and PC2, it is clear that the infradentale expands significantly in a proximal direction. On the other hand, a distal extension was observed in PC3. The first molar tooth's anterior edge shows a proximally expanded morphology in PC3, while it shows a distally and medially enlarged morphology in PC1 and PC2. The processus coronoideus shows a distally oriented extension in PC2, while it shows a proximally directed expansion in PC1 and PC3. The gonion caudale shows a proximal growth in PC2, while it shows a distal expansion in PC1 and PC3. In PC1 and PC3, the gonion showed a clear enlargement along with a distal and ventral displacement. PC2, on the other hand, showed a proximal enlargement. The second premolar tooth terminal in PC1 and PC2 is seen to expand medially and distally in a manner toward the ventral border. However, it is seen that this expansion takes place in a proximal and medial direction in PC3. While the distance between the ventral edge and the Foreman mentale increased lateral and distal in PC2, it increased proximally in PC1 and PC3. Here, it was found that the mandible enlarged both proximally and distally when the values for PC1 and PC3 rose. PC2 showed a narrowing from the proximal to the distal region. Figure 3 shows the 16 primary components that were identified using principal component analysis. Together, the first three of these factors (PC1, PC2, and PC3) were able to account for 27,487, 17,246 and 13,914 of the variance. Moreover, the main component analysis did not show a full separation of the genders, even with the high total variance and the significant results of the discriminant function analysis (Figure 4). The anterior border of the first molar tooth showed a medial augmentation in shape as the female to male ratio rose. The ramus mandible's anterior edge enlarges as it approaches the proximal end. Lateral expansion of the processus coronoideus was seen. It has been seen that the gonion has enlarged ventrally and distally. Laterally, the gap between the ventral margin and the mental foramen has widened. In this regard, males were found to have a larger corpus mandible and a smaller ramus mandible in comparison to females. The gender distinction in Discriminant Function Analysis is presented in both shape variations and graphically in Figures 5a, b and 6. Using Discriminant Function Analysis (DFA), an objective assessment of gender differences was performed. Figure 6 displays the variance and frequency distribution of individuals derived from Discriminant Function Analysis for sex determination in Norduz sheep's mandibles. The male and female groups are clearly completely different from one other. Additionally, this distinction shows that there is a statistically significant difference between the two groups. The p-value (p=0.02) in the discriminant function analysis was less than 0.05.

PC No Eigenvalues Varyans (%) PC No Eigenvalues Varyans (%)
TB1 0,00040929 27,487 TB9 0,00003808 2,557
TB2 0,00025680 17,246 TB10 0,00002842 1,909
TB3 0,00017209 13,914 TB11 0,00001513 1,016
TB4 0,00017209 11,557 TB12 0,00001255 0,843
TB5 0,00010624 7,135 TB13 0,00000714 0,480
TB6 0,00008472 5,689 TB14 0,00000273 0,184
TB7 0,00007692 5,166 TB15 0,00000201 0,135
TB8 0,00006869 4,613 TB16 0,00000103 0,069
Table 1.Principal components, eigenvalues and variances.

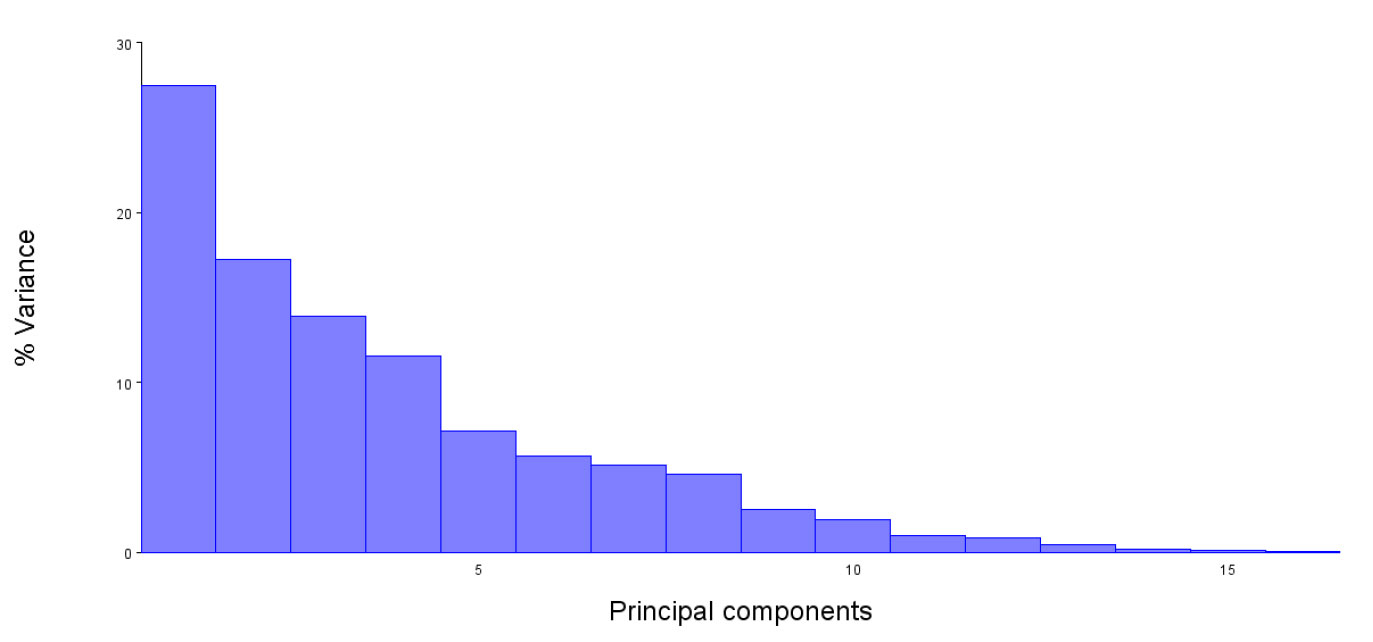

Figure 1. Variation scatter plot of principal component analysis.

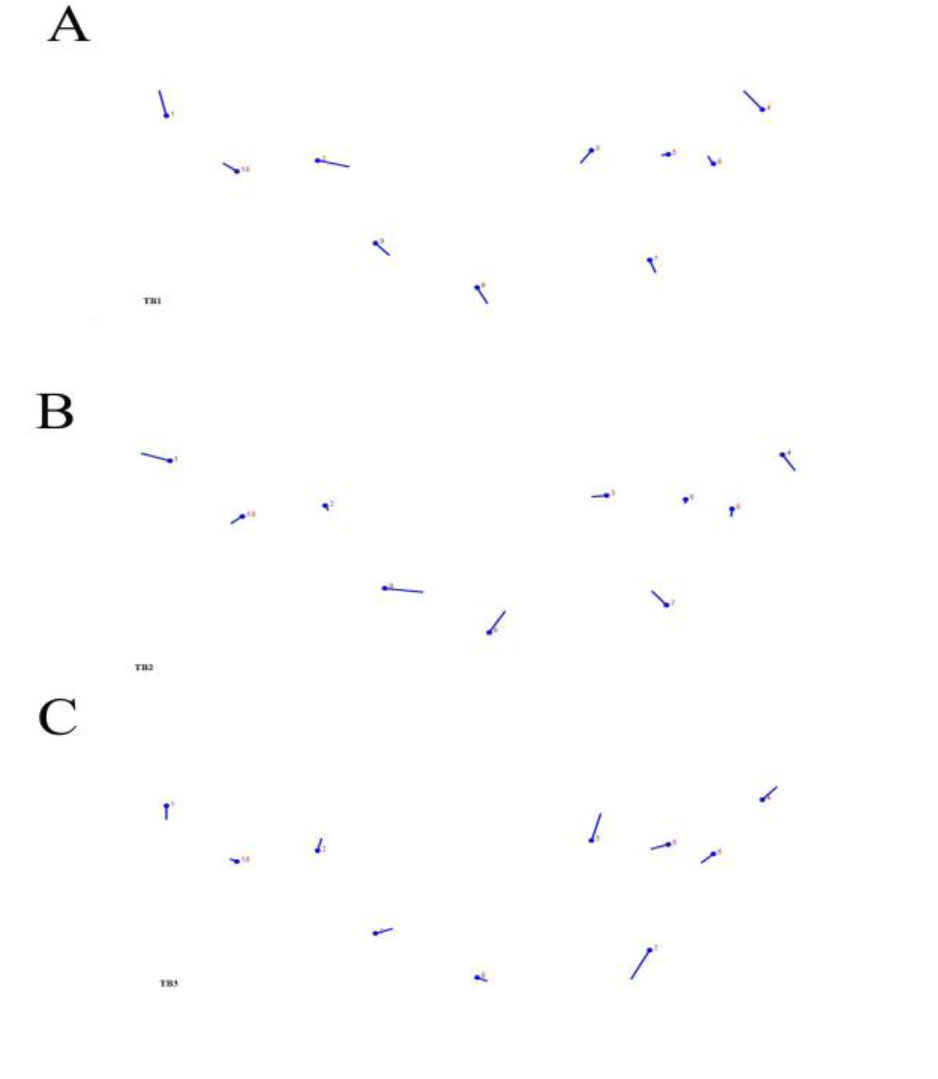

Figure 2. The shape variation of major components 1, 2, and 3 is depicted in figure. 1. Infradentale 2. The first molar tooth's anterior edge, 3: The ramus mandible's anterior edge, Incsura mandibulae, Processus coronoideus, and 6. Condylaris processus, 7: Caudale gonion, 8: Ventrale gonion, 9: The second premolar's end point in relation to the ventral edge, 10: The mental foramen's distal to the ventral edge.

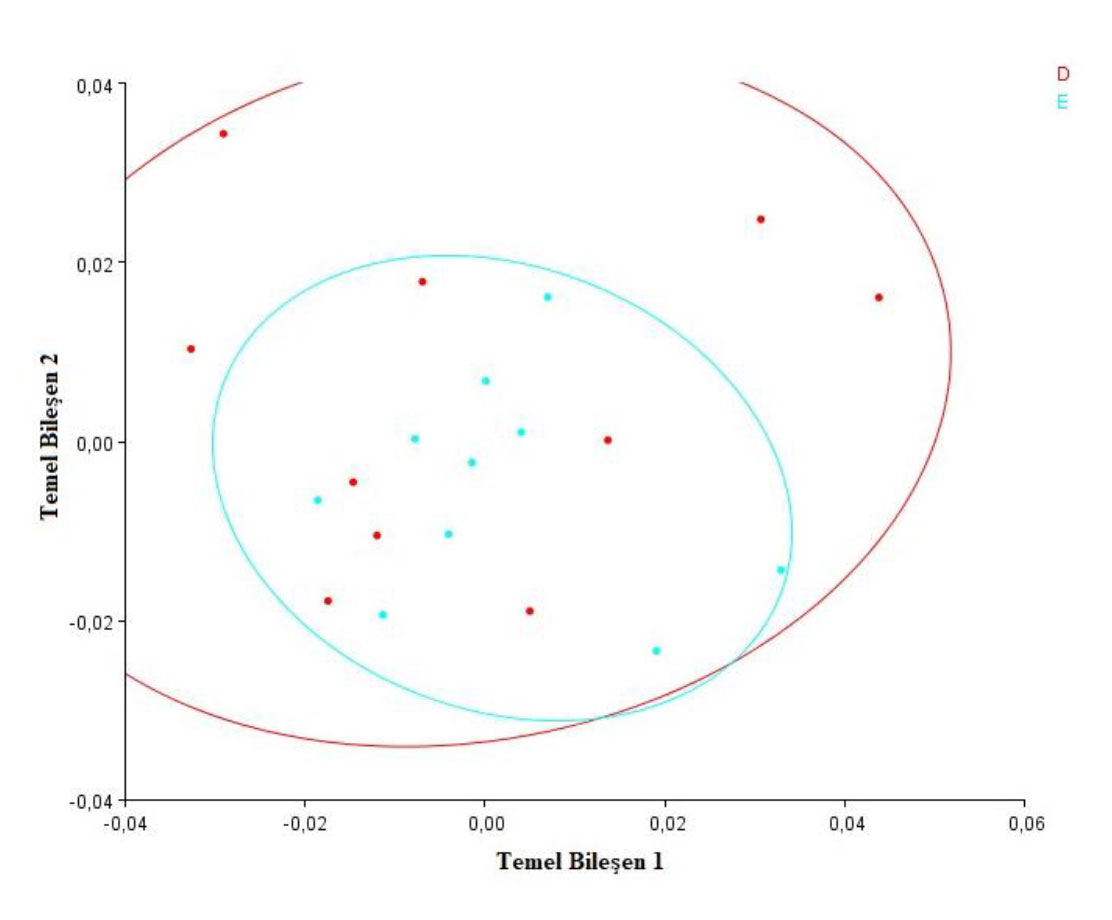

Figure 3. Principal component 1-2 variation distributions and 95% confidence ellipses in Norduz sheep. Red dots: female, green dots: male.

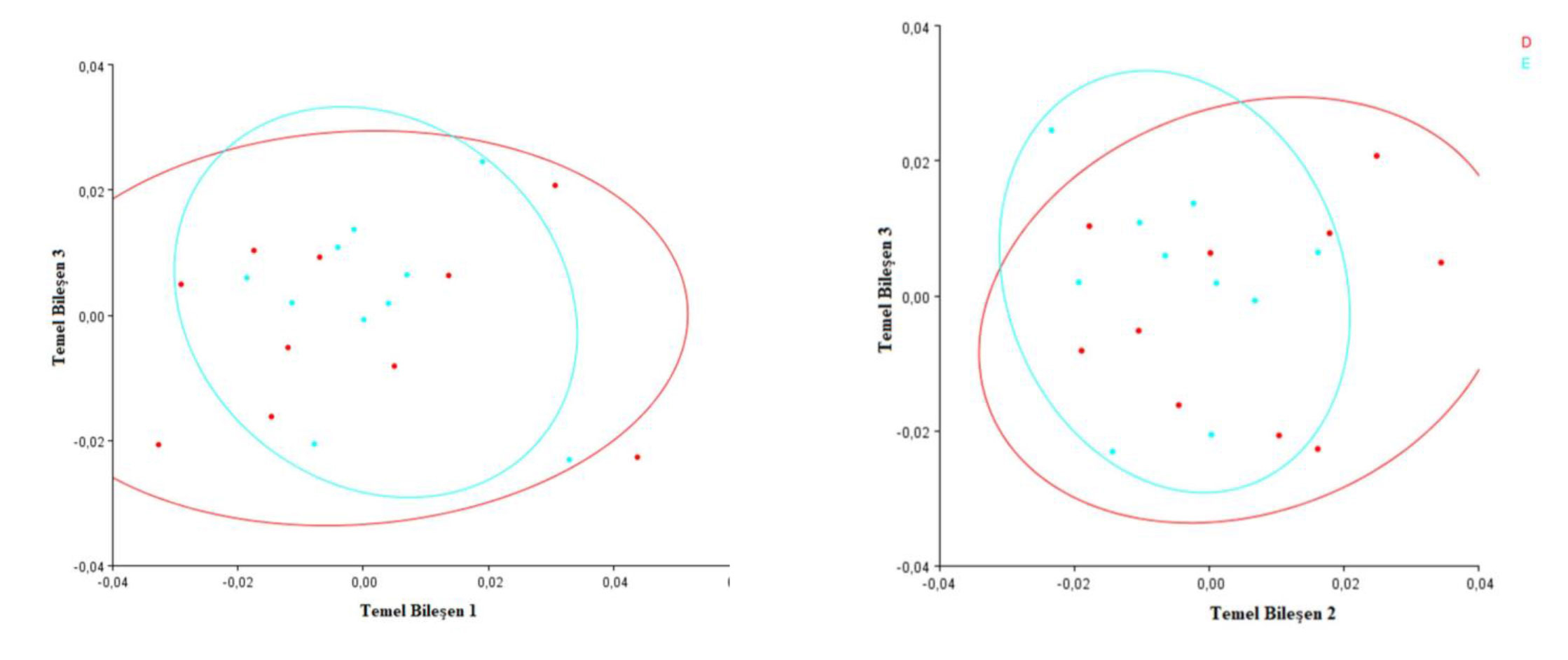

Figure 4.A,B. Norduz sheep Principal component 1-3 and 2-3 variation distributions and 95% confidence ellipses. Red dots: female, green dots: male.

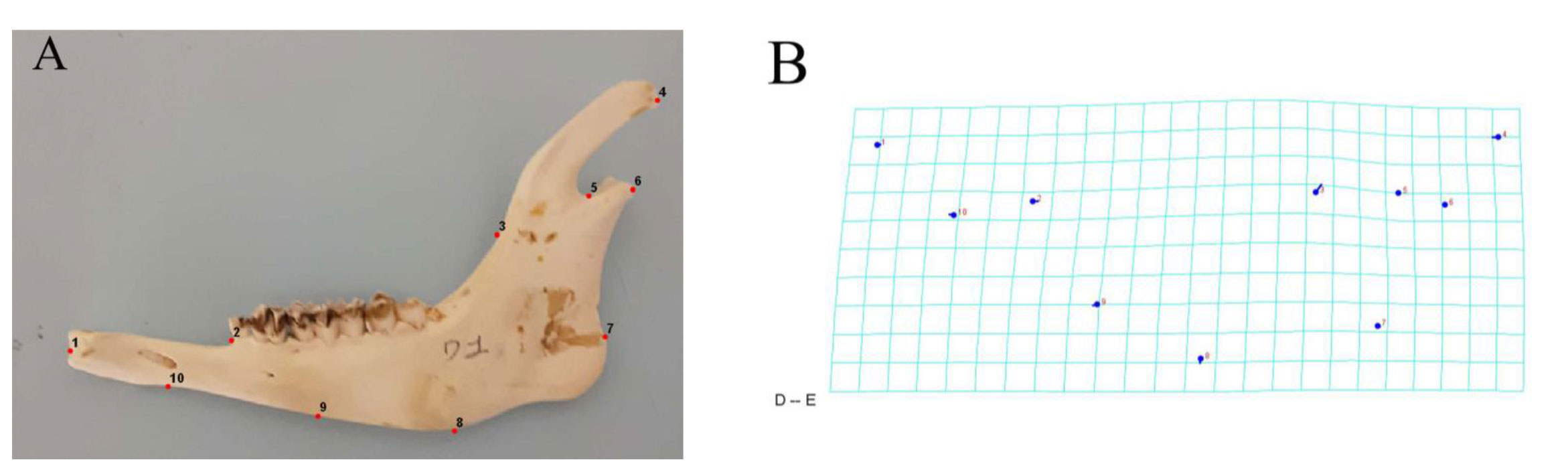

Figure 5.A,B. Ten selected points on the mandible are presented in photograph A. B illustrates the differences between male and female with punctuation. The circular dots represent the female subjects, while the extensions emanating from the dots represent the male subjects.

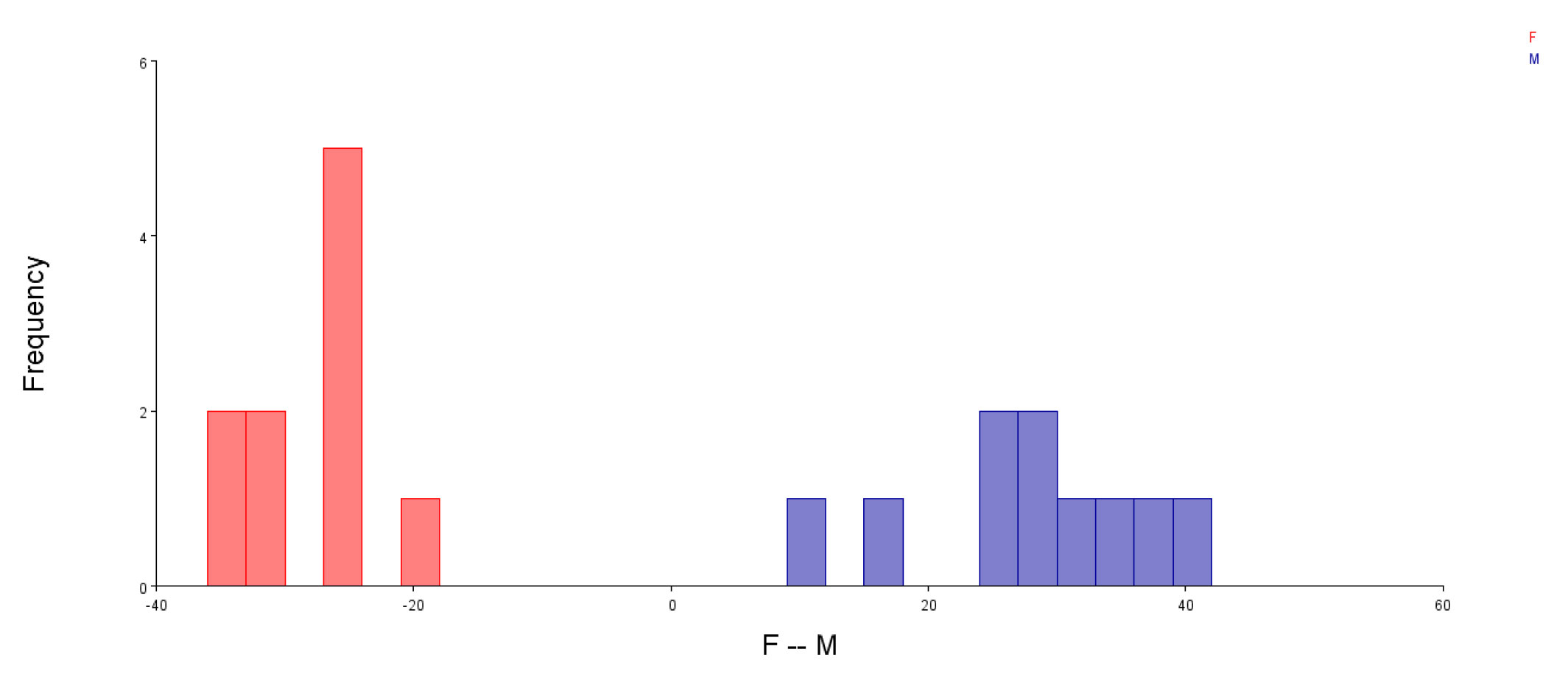

Figure 6. Gender distribution graph in Discriminant Function Analysis. Red: female, green: male.

4. Discussion

In the present study, a total of 20 mandibles from Norduz sheep (10 females and 10 males) were utilized. The mandibles of Norduz sheep were marked at 10 points, and both principal component analysis and discriminant function analysis were performed with geometric morphometric analysis. The Norduz sheep mandible was examined in order to determine the sex of the animal. The application of the geometric morphometrics method proved to be an invaluable technique for the differentiation of sexes in Norduz sheep mandibles. In our study, while no separation between the sexes was observed in the Principal Component Analysis, a complete separation between genders was evident in the Discriminant Function Analysis. In the Discriminant Function Analysis, a gradual enlargement was observed in the corpus mandible as the sex progressed from female to male. Conversely, the ramus mandible demonstrated a narrowing trend. As previously stated, the morphological data obtained from the skull and jawbone of living mammals can be used to reveal phylogenetic relationships thanks to the studies carried out with the geometric morphometric method ( 33 ). The researchers indicated that principal component analysis conducted within the framework of geometric morphometry elucidated 24.92% of the total shape disparity associated with the first principal component, particularly in the mandible of Awassi sheep ( 27 ). In the mandible of the Norduz sheep, it was determined that the first basic component explained 27.49% of the total shape difference. In a study of the jawbone of Anatolian wild sheep, the researchers ( 34 ) reported that no sex-related differences were observed in the jawbone of Anatolian wild sheep.

Similarly, principal component analysis revealed no dimorphism in Norduz sheep, consistent with the findings of Demircioğlu et al. (2023), who reported no dimorphism in the mandible of Avesi sheep. However, a complete separation between the sexes was observed in terms of Discriminate Function Analysis. In their studies on Anatolian wild sheep, Yalçın et al. (2010) proposed that the divergence in mandibular morphology at the LM9 level is a notable phenomenon. They postulated that this disparity is influenced by a complex interplay of environmental factors, dietary habits, and evolutionary adaptations during domestication. As observed in the aforementioned study, the gonion ventral enlarges distally in PC1 and PC3 and proximally in PC2 in Norduz sheep, exhibiting a similar pattern to that observed in the study. Significant differences in the LM9 parameter were also reported in Awassi sheep (Demircioğlu et al., 2023). Furthermore, it was indicated that discrepancies were observed in the LM2, LM8 and LM10 levels, albeit to a limited extent. Duro et al. (2021) also employed the geometric morphometry method to investigate sexual dimorphism in turtles, thereby contributing to the existing body of knowledge on this topic. Furthermore, in addition to the aforementioned studies on the skull, which clearly demonstrate dimorphism in ruminants, various researchers have also conducted studies on the lower jawbone, resulting in the publication of their findings in the scientific literature ( 35 ). Principal component variances, which express statistical and shape variations between groups, are related to the number of materials used. In their principal component analysis study, Koçak et al. (2023) obtained 46 variances, whereas in our study, 16 variances were obtained due to the difference in the number of animals. The same method was employed in our study as was used by the aforementioned researchers ( 21 ), who conducted gender discrimination with discriminant function analysis. This resulted in a complete separation between the genders. Analyses were conducted on the lengths determined by studies on the skull ( 15 ), mandible ( 15 , 35 ) and metapodium ( 29 , 37 ) in sheep. The unique anatomical differences of the species were evaluated with various methods in terms of species and sex, as in our study. A more straightforward analysis of variation and deviation was employed to examine the impact of variables on gender in Norduz sheep. This work is expected to advance both the morphometric findings and the morphometric analysis of the Norduz sheep mandible. The studies that will be carried out in this field, such as the diagnosis and identification of the osteological materials retrieved from archaeological excavations, the development of three-dimensional models, and the application of these morphological analyses in animal-human models, will greatly benefit from these analyses. Additionally, using principal component analysis with the data stratified by race, the principal component variation values between males and females were investigated. Principal component analysis was also used to assess the differences in form between males and females. Furthermore, the study's main focus—gender determination—was also assessed using discriminant function analysis.

Acknowledgment

None

Authors' Contribution

Study concept and design: S.D and S.K. Acquisition of data: S.D and S:K Analysis and interpretation of data: S.D. Drafting of the manuscript: S.D. Critical revision of the manuscript for important intellectual content: S.D. Statistical analysis: S.K.

Ethics

The study permit for animal experiments was approved by the local ethics committee at Kafkas University with reference code 2023/070 (KAU/HADYEK).

Conflict of Interest

The authors have declared no conflicts of interest.

Data Availability

The data that underpin the findings of this study are available from the corresponding author upon reasonable request.
