Permethrin Resistance in Field Populations of Rhipicephalus sanguineus sensu lato (Latrielle, 1806) Collected From Dogs in Eastern Iran

1.Introduction
Ticks are one of the most important arthropod vectors of disease-causing agents in both humans and animals. Rhipicephalus sanguineus is an important tick species that feeds mainly on dogs but can also infest other mammalian hosts [1]. R. sanguineus feeds on the blood of their hosts and transmit a wide range of pathogens, including viruses, bacteria, and protozoans [2]. R. sanguineus is the most commonly found tick worldwide due to its biological flexibility. One of the primary methods of controlling tick infestations is through the use of acaricides. However, the excessive and often inappropriate use of acaricides has led to the emergence of acaricide resistance, including in R. sanguineus [3, 4]. Understanding the potential acaricide resistance in R. sanguineus populations in Iran is crucial for developing effective strategies to control tick infestations and prevent the transmission of tick-borne diseases [5]. Acaricide resistance is a complex phenomenon that involves various genetic and physiological mechanisms. These mechanisms can result in decreased sensitivity to acaricides used to control tick populations [6]. Recent studies have suggested that acaricide resistance in tick populations is multifactorial and involves several mechanisms, including target-site insensitivity, metabolic detoxification, and changes in behavior and physiology [7]. Target-site insensitivity involves mutations in the genes that code for the target sites of acaricides, resulting in decreased binding of acaricides and reduced effectiveness in killing ticks. Metabolic detoxification involves the overexpression of enzymes that break down acaricides, making them less effective. Changes in behavior and physiology involve alterations in the tick’s behavior, such as reduced exposure to acaricides, and changes in the tick’s physiology, such as altered cuticle permeability, which can reduce the uptake of acaricides. The emergence of acaricide resistance in Rhipicephalus populations in Iran is a major concern for both animal and public health [8]. Further research is needed to elucidate the molecular and physiological mechanisms underlying acaricide resistance in R. sanguineus populations in Iran.

2. Materials and Methods
2.1. Sample collection
During June 2022 to May 2023, brown dog ticks were collected from sheepdogs of four locations in rural areas of South Khorasan Province, east of Iran. The engorged and/or partially engorged female ticks were collected from naturally infested dogs using tick collection methods, tick drags, and visual searches. The collected ticks were transported immediately to the laboratory in vials containing moist filter paper. The morphological identification of collected samples was confirmed under a stereo-microscope using the standard keys [9]. From each colony, 30 engorged females were incubated in an environmental chamber at 26–27 °C and 85±5% relative humidity for 3-4 weeks to allow egg laying. The 14-21-day-old tick larvae were utilized for the bioassay experiments. The female adult specimens that had been depleted of eggs were isolated, rinsed with distilled water, and then dried using paper towels. Each individual was then frozen separately at a temperature of -80 °C for future use in molecular analysis.

2.2 Acaricide bioassays
The sample size calculation was based on World Health Organization (WHO) guidelines [10]. The efficacy of permethrin was assessed using the larval packet test (LPT) developed for acaricide testing of tick populations [11]. Technical-grade 92% permethrin (Mumbai, India) was used as the active ingredient (AI) for the LPT. A stock solution was prepared by dissolving permethrin in a 2:1 ratio using trichloroethylene (TCE) (Merck, Germany) and olive oil [12]. In Iran, the standard susceptible indigenous strain of R. sanguineus was not available. Therefore, in this study, the discriminating concentration of acaricide-susceptible brown dog tick strain was acquired from a previous study, which was set as 0.19% [13]. The DC used was calculated by doubling the lethal concentration 99.9% (LC99) derived from a series of tests conducted with a susceptible strain [14]. The LC99 of 0.09% AI was also tested. Bioassays were conducted in three replicates with 100 larvae per packet for each concentration.

2.3 Molecular analysis
The genomic DNA of 10 R. sanguineus larvae from each location was extracted using the DNeasy® Blood and Tissue Kit (QIAGEN) according to the manufacturer’s guidelines. Each larva was homogenized in 50 microliters of distilled water and incubated at 56 °C for 6 hours before being transferred to the column for DNA extraction. The quality and concentration of the DNA obtained were assessed by agarose gel electrophoresis and using a Nanodrop spectrophotometer. Polymerase chain reaction (PCR) amplification was conducted in a total volume of 25 μL, containing 2 μL of template DNA, 1 μL of each primer (forward and reverse), 12.5 μL of 2X Taq PCR MasterMix (Takara, Japan), and 8.5 μL of nuclease-free water. The primers FG-228 (5’- CTA ACA TCT ACA TGT ACC -3’) and BDT-227 (5’- TTG TTC ATT GAA ATT GTC AA-3’) were utilized for amplification of the domain III, segment VI of the sodium channel gene [15]. The PCR amplification was carried out with an initial denaturation at 96 °C for 3 min, followed by 35 cycles of denaturation at 94 °C for 1 min, annealing at 50 °C for 1 min, extension at 72 °C for 1 min, and a final extension at 72 °C for 7 min. In total, 20 samples demonstrating phenotypic susceptibility and 20 samples displaying phenotypic resistance were used for the sequence analyses.

2.4 Statistical analysis
The evaluation of mortality was conducted at 24 hours. The adjustment of control mortality was calculated based on Abbott’s formula [16]. The percentage survival was recorded for each multiple of the diagnostic concentration. The classification of resistant phenotypes was divided into three classes: Low resistance (60 to 90% mortality in LC99×2), moderate resistance (13 to 50% mortality in LC99×2), and severe resistance (1 to 12% mortality in LC99×2) [17].

3. Results

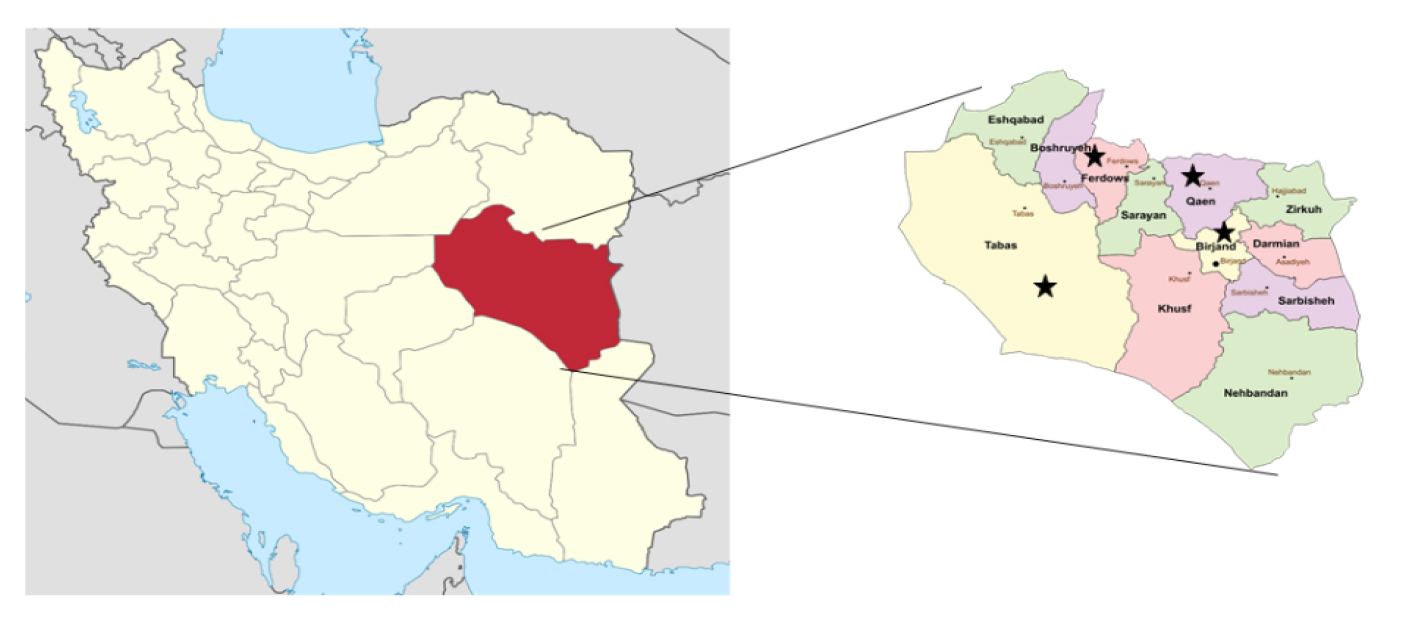

This study represents the initial assessment of acaricides’ efficacy on R. sanguineus populations in South Khorasan Province (Figure 1).

In these study, only four populations of R. sanguineus were reared successfully and provided sufficient numbers of larvae, and were subsequently subjected to bioassay to test their susceptibility to permethrin. The field-caught R. sanguineus strains were evaluated for mortality with permethrin concentrations one and two times the diagnostic concentrations, i.e. 0.09 and 0.19%. The mortality rate at LC99 ranged between 40.5 and 49.1% (Table 1).

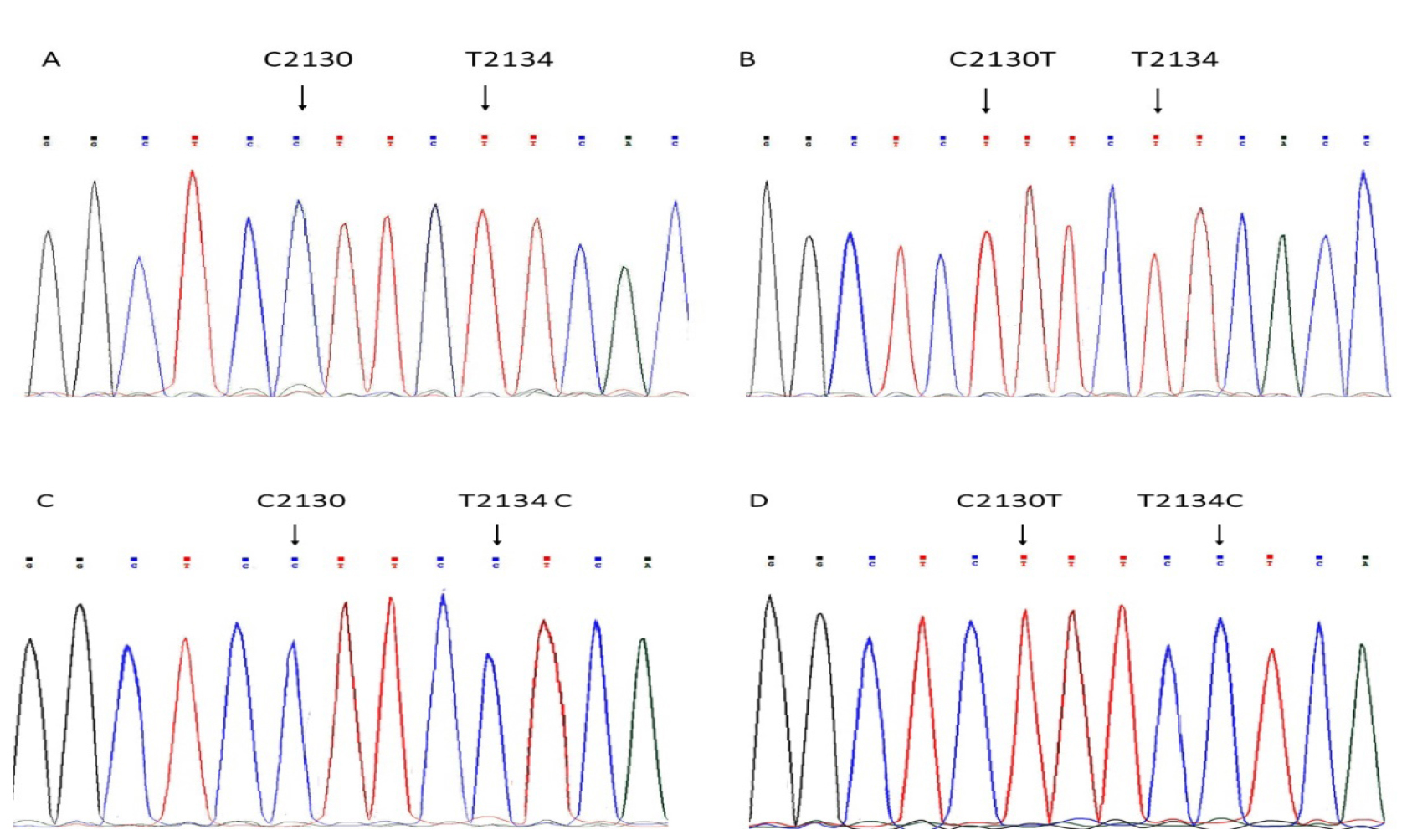

At 2×LC99 (0.19% AI), lethal rates ranged from 48.3% to 65.1%. To screen for mutations in the sodium channel’s domain III, segment VI, sequencing was conducted on 10 random samples from each phenotypically resistant population of brown dog ticks (Figure 2).

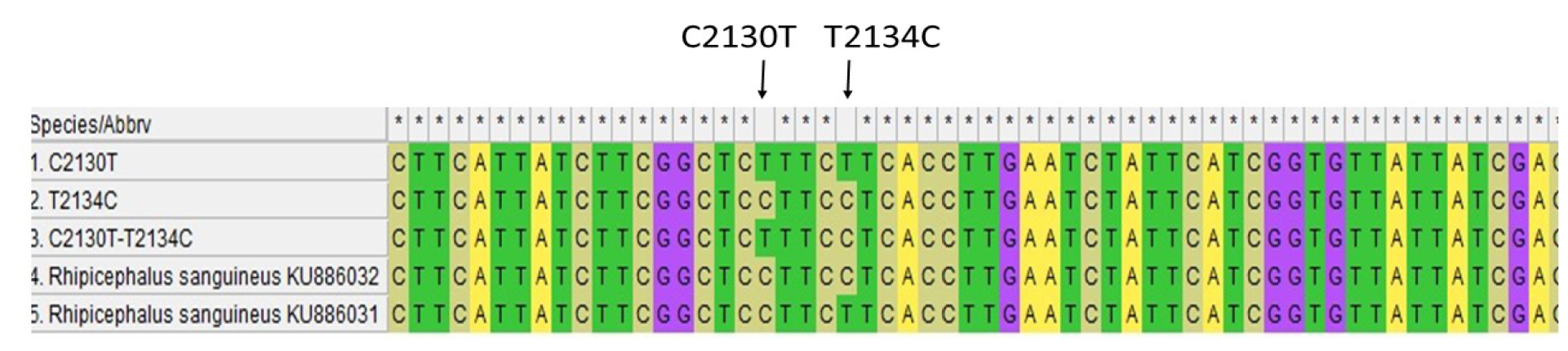

The analysis revealed four genotypes on domain III among the R. sanguineus population from eastern Iran, by comparing the susceptible (GenBank KU886031) and permethrin-resistant (KU886032) R. sanguineus larvae. Out of 40 studied ticks, two ticks (5%) were wild strains for all loci. In this study, two ticks (5%) exhibited homozygosity for a silent mutation known as C2130T. One tick carried the C2130T mutation along with the T2134C mutation, while the remaining ticks (90%) showed homozygosity for the T2134C mutation (Figures 3 and 4).

​​​​​​​4. Discussion
This study provides the first laboratory-confirmed permethrin resistance data for brown dog ticks from the eastern Iran. R. sanguineus is one of the most prevalent tick species infected with different pathogens in Iran [18]. The results of this study provide important preliminary insights into the efficacy of permethrin on the R. sanguineus population in eastern. The findings show that the mortality rates of R. sanguineus populations varied significantly when subjected to different concentrations of permethrin. At 2×LC99 (0.19% AI), lethal rates ranged from 48.3% to 65.1%, indicating that this concentration is not effective for controlling the tick population. Previous studies in Iran have also shown high levels of resistance to pyrethroids insecticides among populations of Rhipicephalus [8, 19]. Limited studies have been carried out on the resistance of ticks to pyrethroid in Iran, [20, 21] and the present study is the first comprehensive investigation of R. sanguineus in this area. Previous studies from around the world have also demonstrated resistance to pyrethroid pesticides among R. sanguineus [12, 13]. Importantly, our bioassay findings highlight the need for careful consideration of appropriate acaricide concentrations to achieve effective tick control, suggesting that higher doses may be required to obtained satisfactory outcomes. Overall, these results represent an important step toward the development of more effective and targeted approaches for tick control in Iran.
In this study, Only four populations of R. sanguineus were reared successfully. An important consequence of resistance development in tick populations may be a decline in overall fitness. According to Roma et al. (2010), exposure to sub-lethal levels of permethrin adversely affects reproductive success [22]. Subsequent research could explore how these sub-lethal concentrations of permethrin impact the reproductive capacity of adult female R. sanguineus in comparison to their susceptible counterparts.
The current study identified a mutation on domain III, segment VI of the sodium channel that was responsible for resistance to insecticides in the tick population [3, 23]. In previous studies, it has been shown that T2134C mutation in this gene is associated with resistance to pyrethroid in R. sanguineus [3]. The findings reveal that out of the 40 ticks examined, 5% were wild strains, suggesting that the majority of ticks had been subjected to selection pressure and had acquired resistance to insecticides. In this study, 38 out of 40 samples (90%) carried the T2134C mutation, which could explain the high levels of permethrin resistance. However, it is possible that other mechanisms, such as metabolic detoxification, sequestration, reduced penetration, or additional mutations in the sodium channel, may be related to insecticide resistance [24, 25].

5. Conclusion
Overall, this study underscores the importance of bioassay and genetic studies in understanding and controlling brown dog ticks populations. The number of samples collected may not fully represent the genetic diversity of the tick populations across the eastern regions of Iran. A larger sample size from various geographical locations could provide a more comprehensive understanding of resistance patterns. The study primarily focused on permethrin resistance, which may not reflect the overall resistance profile of tick populations to other classes of acaricides. A broader assessment of resistance to multiple insecticides would provide a more complete picture. Limited funding restricted the scope of the sequencing project, potentially resulting in a smaller sample size and fewer gene targets being analyzed than initially desired.

Ethical Considerations
Compliance with ethical guidelines
This study was approved by the Research Ethics Committee of the Science and Research Branch, Islamic Azad University, Tehran, Iran (Code: IR.IAU.SRB.REC.1403.330).

Data availability
The data that support the findings of this study are available from the corresponding author upon reasonable request.

Funding
The present study did not receive any grant from public, commercial, or not-for-profit funding agencies.

Authors' contributions
Conceptualization: Abolfazl Valizadeh, Saloomeh Shirali, and Rahmat Solgi; Project administration: Abolfazl Valizadeh; Methodology and investigation: Saloomeh Shirali and Ehsan Khaksar; Data curation: Abolfazl Valizadeh and Rahmat Solgi; Visualization and validation: Rahmat Solgi and Saloomeh Shirali; Supervision and resources: Rahmat Solgi and Saloomeh Shirali; Software: Ehsan Khaksar; Funding acquisition: Saloomeh Shirali; Formal analysis and writing the original draft: Abolfazl Valizadeh, Rahmat Solgi, and Ehsan Khaksar; Review and editing: All authors.

Conflict of interest
The authors declared no conflict of interest.

Acknowledgements
Some parts of this research were performed at Birjand University of Medical Sciences, and we would like to express our gratitude to all our colleagues in these centers who kindly helped us during the study.

References

1. Nava S, Estrada-Peña A, Petney T, Beati L, Labruna MB, Szabó MP, et al. The taxonomic status of Rhipicephalus sanguineus (Latreille, 1806). Vet Parasitol. 2015; 208(1-2):2-8. [DOI:10.1016/j.vetpar.2014.12.021] [PMID]
2. Latrofa MS, Dantas-Torres F, Giannelli A, Otranto D. Molecular detection of tick-borne pathogens in Rhipicephalus sanguineus group ticks. Ticks Tick Borne Dis. 2014; 5(6):943-6. [DOI:10.1016/j.ttbdis.2014.07.014] [PMID]
3. Klafke G, Miller R, Tidwell J, Barreto R, Guerrero F, Kaufman P, et al. Mutation in the sodium channel gene corresponds with phenotypic resistance of Rhipicephalus sanguineus sensu lato (Acari: Ixodidae) to pyrethroids. J Med Entomol. 2017; 54(6):1639-42. [DOI:10.1093/jme/tjx060] [PMID]
4. Miller RJ, George JE, Guerrero F, Carpenter L, Welch JB. Characterization of acaricide resistance in Rhipicephalus sanguineus (Latreille)(Acari: Ixodidae) collected from the Corozal army veterinary quarantine center, Panama. J Med Entomol. 2001; 38(2):298-302. [DOI:10.1603/0022-2585-38.2.298] [PMID]
5. Foil L, Coleman P, Eisler M, Fragoso-Sanchez H, Garcia-Vazquez Z, Guerrero F, et al. Factors that influence the prevalence of acaricide resistance and tick-borne diseases. Vet Parasitol. 2004; 125(1-2):163-81. [DOI:10.1016/j.vetpar.2004.05.012] [PMID]
6. Scott JG. Investigating mechanisms of insecticide resistance: methods, strategies, and pitfalls. In: Roush RT, Tabashnik BE, editors. Pesticide resistance in arthropods. Boston: Springer; 1990. [DOI:10.1007/978-1-4684-6429-0_3]
7. Yessinou RE, Akpo Y, Sidick A, Adoligbe C, Youssao Abdou Karim I, Akogbeto M, et al. Evidence of multiple mechanisms of alphacypermethrin and deltamethrin resistance in ticks Rhipicephalus microplus in Benin, West Africa. Ticks Tick Borne Dis. 2018; 9(3):665-71. [DOI:10.1016/j.ttbdis.2018.02.013] [PMID]
8. Ziapour SP, Kheiri S, Fazeli-Dinan M, Sahraei-Rostami F, Mohammadpour RA, Aarabi M, et al. Pyrethroid resistance in Iranian field populations of Rhipicephalus (Boophilus) annulatus. Pestic Biochem Physiol. 2017; 136:70-9. [DOI:10.1016/j.pestbp.2016.08.001] [PMID]
9. Hosseini-Chegeni A, Tavakoli M, Telmadarraiy Z. The updated list of ticks (Acari: Ixodidae & Argasidae) occurring in Iran with a key to the identification of species. Syst Appl Acarol. 2019; 24(11):2133-66. [Link]
10. Test procedures for insecticide resistance monitoring in malaria vector mosquitoes. Geneva: WHO; 2016. [Link]
11. Resistance management and integrated parasite control in ruminants-guidelines, module 1-Ticks: Acaricide resistance: diagnosis, management and prevention. Rome: Food and Agriculture Organization; 2004. [Link]
12. Eiden AL, Kaufman PE, Oi FM, Allan SA, Miller RJ. Detection of permethrin resistance and fipronil tolerance in Rhipicephalus sanguineus (Acari: Ixodidae) in the United States. J Med Entomol. 2015; 52(3):429-36. [DOI:10.1093/jme/tjv005] [PMID]
13. Eiden AL, Kaufman PE, Allan SA, Oi F. Establishing the discriminating concentration for permethrin and fipronil resistance in Rhipicephalus sanguineus (Latreille)(Acari: Ixodidae), the brown dog tick. Pest Manag Sci. 2016; 72(7):1390-5. [DOI:10.1002/ps.4165] [PMID]
14. Rosario-Cruz R, Guerrero FD, Miller RJ, Rodriguez-Vivas RI, Tijerina M, Dominguez-Garcia DI, et al. Molecular survey of pyrethroid resistance mechanisms in Mexican field populations of Rhipicephalus (Boophilus) microplus. Parasitol Res. 2009; 105(4):1145-53. [DOI:10.1002/ps.4165]
15. Morgan JA, Corley SW, Jackson LA, Lew-Tabor AE, Moolhuijzen PM, Jonsson NN. Identification of a mutation in the para-sodium channel gene of the cattle tick Rhipicephalus (Boophilus) microplus associated with resistance to synthetic pyrethroid acaricides. Int J Parasitol. 2009; 39(7):775-9. [DOI:10.1016/j.ijpara.2008.12.006] [PMID]
16. Abbott WS. A method of computing the effectiveness of an insecticide. J Econ Entomol. 1925; 18(2):265-7. [DOI:10.1093/jee/18.2.265a]
17. Thomas DB, Klafke G, Busch JD, Olafson PU, Miller RA, Mosqueda J, et al. Tracking the increase of acaricide resistance in an invasive population of cattle fever ticks (Acari: Ixodidae) and implementation of real-time PCR assays to rapidly genotype resistance mutations. Ann Entomol Soc Am. 2020; 113(4):298-309. [DOI:10.1093/aesa/saz053]
18. Khoobdel M, Jafari AS, Telmadarraiy Z, Sedaghat MM, Bakhshi H. Tick-borne pathogens in Iran: A meta-analysis. Asian Pac J Trop Med. 2021; 14(11):486-504. [DOI:10.4103/1995-7645.329009]
19. Enayati AA, Asgarian F, Amouei A, Sharif M, Mortazavi H, Boujhmehrani H, et al. Pyrethroid insecticide resistance in Rhipicephalus bursa (Acari, Ixodidae). Pestic Biochem Physiol. 2010; 97(3):243-8. [DOI:10.1016/j.pestbp.2010.03.003]
20. Ziapour SP, Kheiri S, Asgarian F, Fazeli-Dinan M, Yazdi F, Mohammadpour RA, et al. First report of pyrethroid resistance in Rhipicephalus (Boophilus) annulatus larvae (Say, 1821) from Iran. Acta Trop. 2016; 156:22-9. [DOI:10.1016/j.actatropica.2016.01.001] [PMID]
21. Ghavami MB, Goli S, Mohammadi J, Vatandoost H. Susceptibility level of Ornithodoros tholozani (Acari: Argasidae) to some pesticides in North West of Iran. Persian J Acarol. 2015; 4(1):83-94. [Link]
22. Roma GC, Bechara GH, Camargo Mathias MI. Permethrin-induced ultrastructural changes in oocytes of Rhipicephalus sanguineus (Latreille, 1806) (Acari: Ixodidae) semi-engorged females. Ticks Tick Borne Dis. 2010; 1(3):113-23. [DOI:10.1016/j.ttbdis.2010.05.004] [PMID]
23. Tucker NSG, Kaufman PE, Weeks ENI, Rowland J, Tidwell J, Miller RJ. Characterization of a sodium channel mutation in permethrin-resistant Rhipicephalus sanguineus (Acari: Ixodidae). J Med Entomol. 2017; 54(6):1633-8. [DOI:10.1093/jme/tjx127] [PMID]
24. Wyk RDj, Baron S, Maritz-Olivier C. An integrative approach to understanding pyrethroid resistance in Rhipicephalus microplus and R. decoloratus ticks. Ticks Tick Borne Dis. 2016; 7(4):586-94. [DOI:10.1016/j.ttbdis.2016.01.007] [PMID]
25. Tiotour M, Shaddel M, Aminianfar M, Mirahmadi H, Barzegar G, Solgi R, et al. Identification of knockdown resistance mutations in the Cimex hemipterus (Hemiptera: Cimicidae) in Iran. Am J Trop Med Hyg. 2022; 107(1):204-7. [DOI:10.4269/ajtmh.22-0092] [PMID]
