1. Introduction
Uropathogenic Escherichia coli (UPEC) is a bacterium that is commonly associated with urinary tract infections (UTIs), particularly among female patients. It is therefore probable that numerous virulence factors (VFs) found in UPEC isolates have an impact on the frequency and severity of UTIs ( 1 , 2 ). A number of these VFs contain genes that encode adhesins, including temperature-sensitive hemagglutinin (tsh), papA, curli fimbriae (csgA), papC- associated pili, a fimbrial adhesin (afa), and the type-1 fimbriae (fimH). These adhesins play a substantial role in the adherence of bacteria to the urinary tract, facilitating the initial stages of urinary tract infections (UTIs). Furthermore, the presence of toxins, such as α-hemolysin (hlyD), has been demonstrated to exert a deleterious effect on the host, thereby significantly accelerating the pathogenicity of the bacterial strain in question ( 3 , 4 ). In addition, genes that encode invasins, such as ibeA, have been shown to facilitate the invasion of microvascular endothelial cells in the brain. Concurrently, genes that encode protective factors, including increased serum survival (iss), have been observed to contribute to the protection of E. coli from the bactericidal effects of serum. Furthermore, the presence of siderophores, such as the sitA iron transporter, facilitates bacterial growth, and the pathogenicity island marker malX is involved in the glucose and maltose transportation in terms of treating urinary tract infections. The escalating prevalence of antibiotic resistance poses a significant health risk ( 5 , 6 ). Bacterial communities known as biofilms adhere to surfaces and are unclasped by an extracellular polymeric substance (EPS) matrix. Such biofilms form in response to environmental signals, allowing a population of bacteria to grow and survive in the urinary tract ( 6 ). In controlled laboratory settings, a specific strain of E. coli has been shown to produce biofilms with varying characteristics based on factors such as nutrient composition, temperature, and flow dynamics ( 7 ). The synthesis of exopolysaccharides (e.g. cellulose) that form the biofilm matrix encompassing the bacteria is facilitated by autotransporter proteins that also play a role in this process ( 8 ). The process of adherence between bacteria and host cells is facilitated by specific bacterial adhesins such as P-fimbriae, which are expressed by the pyelonephritis associated pili gene or the pap gene. P-fimbriae plays an indispensable role in the colonization of the upper urinary tract by bacteria, their affixation to the renal vascular endothelium, and the subsequent development of pyelonephritis ( 9 ). It is imperative to consider the role of S-fimbriae in the context of adhesion, given its regulation by the S-fimbria adhesion gene (sfa) and the sfa gene. These genes, which are classified as mannose resistant adenosine, are located within a region of the chromosome designated as Pathogenicity Islands ( 10 ). The sfa and pap genes are frequently observed in E. coli strains isolated from urinary tract infections (UTIs), and are responsible for encoding pili that aid in the adherence of bacteria to the host tissues, resulting in the formation of antibiotic-resistant biofilms ( 11 ).
It is crucial to identify UPEC strains capable of producing biofilms in order to gain a deeper understanding of the pathogenicity and antibiotic resistance mechanisms exhibited by this bacterium in UTIs. The study's findings indicate that beta-lactam antibiotics are commonly prescribed for the treatment of urinary tract infections in clinical settings ( 12 ). Certain bacterial strains, notably those of Escherichia coli, are capable of producing extended- spectrum beta-lactamases (ESBLs), which are enzymes that can degrade penicillins, first to third-generation cephalosporin, and monobactams (aztreonam). Inhibition of the three primary ESBL enzyme groups - TEM, CTX-M, and SHV - has been demonstrated to be effective when using clavulanic acid, tazobactam, or sulbactam ( 13 ). It is important to note that the management of infections resulting from ESBL-producing E. coli can become increasingly challenging and restricted in cases where resistance to additional antibiotic categories is present concurrently. These categories include aminoglycosides, tetracyclines, chloramphenicol, trimethoprim- sulfamethoxazole, and fluoroquinolones, and are often found within the same plasmids containing the ESBL genes. This phenomenon has the potential to exert a substantial influence on the economic burden of morbidity and mortality associated with UTIs ( 14 ). The present study is thus focused on the examination of the prevalence of biofilm genes (pap, fimH, and sfa) in conjunction with extended-spectrum Beta-Lactamase resistance genes (blaTEM, blaCTX-M, and blaSHV), and on the investigation of the antimicrobial resistance profiles of UPEC in Karaj, Iran.
2. Materials and Methods
2.1. Sample Collection and Isolation of E. coli
This investigation was meticulously planned, with a focus on 78 E. coli isolates found in the urine samples of outpatients suspected of UTIs, spanning a period of 9 months from October 2022 to June 2023. The investigation yielded 73 E. coli isolates, from which 59 of the 73 samples were drawn from female subjects and 14 from male subjects. These samples were then transported to the laboratory within two hours of collection in TSB transport medium. Following this, the samples were cultured on Blood agar (Ibresco, Iran), MacConkey agar (Ibresco, Iran), and EMB agar (Ibresco, Iran) plates. These plates were then incubated at 37°C for a duration of 24 hours. Finally, strains of E. coli were obtained by standard microbiological methods.
2.2. Antimicrobial Susceptibility of E. coli isolates
Samples were selected for the purpose of examining the susceptibility patterns of 10 antimicrobial agents, which belonged to a variety of classes. These were as follows: tetracycline (30µg), imipenem (10µg), ampicillin (10 µg), co-trimoxazole (25µg), amikacin (30µg) and cefixime. (5µg), Cefalexin (30µg), Amoxicillin (25µg), Ciprofloxacin (5µg), and Gentamicin (10µg) discs (Padtan Teb, Iran). The Kirby-Bauer method was employed to investigate the susceptibility of E. coli isolates to antibiotics, with analysis based on the guidelines outlined by CLSI.
2.3. DNA Extraction
In this experiment, DNA was extracted from samples using the boiling method. A loopful of bacterial colonies was suspended in 300 µl of sterile distilled water and subsequently subjected to heating for a duration of 20 minutes. The liquid part was then used as a DNA sample in the PCR (Polymerase Chain Reaction) mixture after spinning it in a machine for 15 minutes at a high speed of 13,000 rpm ( 15 ).
2.4. Detection of Genes
The present study utilized PCR and electrophoresis techniques to ascertain the presence of the pap, fimH, sfa, blaTEM, blaCTX-M, and blaSHV genes. The amplification conditions applied to the pap, fimH, and sfa genes were as follows: denaturation at 95°C for five minutes, 30 cycles of 95°C for one minute, 56°C for 40 seconds, 72°C for 45 seconds, and a final extension at 72°C for five minutes ( 15 - 17 ). Conversely, the blaTEM, blaSHV, and blaCTX-M genes were amplified under the following conditions: a preliminary denaturation at 95°C for 15 minutes, followed by 30 amplification cycles. Each cycle comprised denaturation at 94°C for 30 seconds, annealing at 62°C for 90 seconds, and elongation at 72°C for 60 seconds. The protocol was then concluded with an elongation step at 72°C for 10 minutes ( 18 - 20 ). The molecular approach was optimized using E. coli ATCC 25922 as the control positive strain. The primer sequences and PCR conditions required to detect genes are displayed in Table 1.
Gene | Primer Sequences (5′ to 3′) | Product Size (bp) | annealing | Reference |
---|---|---|---|---|
pap | F: GCAACAGCAACGCTGGTTGCATCAT | 336 | 56°C | ( 15 ) |
R: AGAGAGAGCCACTCTTATACGGACA | ||||
fimH | F: GAGAAGAGGTTTGATTTAACTTATTG | 559 | 56°C | ( 16 ) |
R: AGAGCCGCTGTAGAACTGAGG | ||||
sfa | F: CTCCGGAGAACTGGGTGCATCTTAC | 410 | 56°C | ( 17 ) |
R: CGGAGGAGTAATTACAAACCTGGCA | ||||
blaCTX-M | F: ATGTGCAGYACCAGTAARGTKATGGC | 593 | 62 °C | ( 18 ) |
R: TGGGTRAARTARGTSACCAGAAYCAGCGG | ||||
blaSHV | F: CTT TATCGGCCCTCACTCAA | 237 | 62 °C | ( 19 ) |
R: AGGTGCTCATCATGGGAAAG | ||||
blaTEM | F: CGCCGCATACACTATTCTCAGAAT GA | 445 | 62 °C | ( 20 ) |
R: ACGCTCACCGGCTCCAGATTTAT |
2.5. Statistical Analysis
The correlation between sociodemographic factors and the frequency of E. coli isolation was ascertained using model selection log-linear analysis on categorical data. Additionally, the statistical analyses were all conducted using SPSS 25.0 software for Windows. The threshold for statistical significance was determined to be P<0.05.
3. Results
3.1. Antibiotic Susceptibility
The cumulative resistance of E. coli isolates to antimicrobial agents was found to be as follows: 95.9% for Ampicillin; 84.9% for Imipenem; 57.9% for Amoxicillin; and 32.9% for Cefalexin. The findings indicate that the highest levels of sensitivity were observed for Amikacin (86.3%), Gentamicin (78.1%), and Co-trimoxazole (75.3%), respectively. The antibiotic susceptibility pattern of strains to antimicrobial agents is presented in Table 2. Figure 1 demonstrates the percentage of antibiotic resistance by gender.
Antibiotics | Sensitive (%) | Intermediate (%) | Resistance (%) |
---|---|---|---|
Tetracycline | 41 (56.2) | 11 (15.1) | 21 (28.8) |
Amikacin | 63 (86.3) | 2 (2.7) | 8 (11) |
Ampicillin | 1 (1.4) | 2 (2.7) | 70 (95.9) |
Amoxicillin | 37 (36.8) | 9 (5.3) | 27 (57.9) |
Cefalexin | 39 (53.4) | 10 (13.7) | 24 (32.9) |
Co-trimoxazole | 55 (75.3) | 6 (8.2) | 12 (16.4) |
Cefixime | 41 (56.2) | 14 (19.2) | 18 (24.7) |
Imipenem | 8 (11) | 3 (8.2) | 62 (84.9) |
Ciprofloxacin | 43 (58.9) | 9 (12.3) | 21 (28.8) |
Gentamicin | 57 (78.1) | 1 (1.4) | 15 (20.5) |

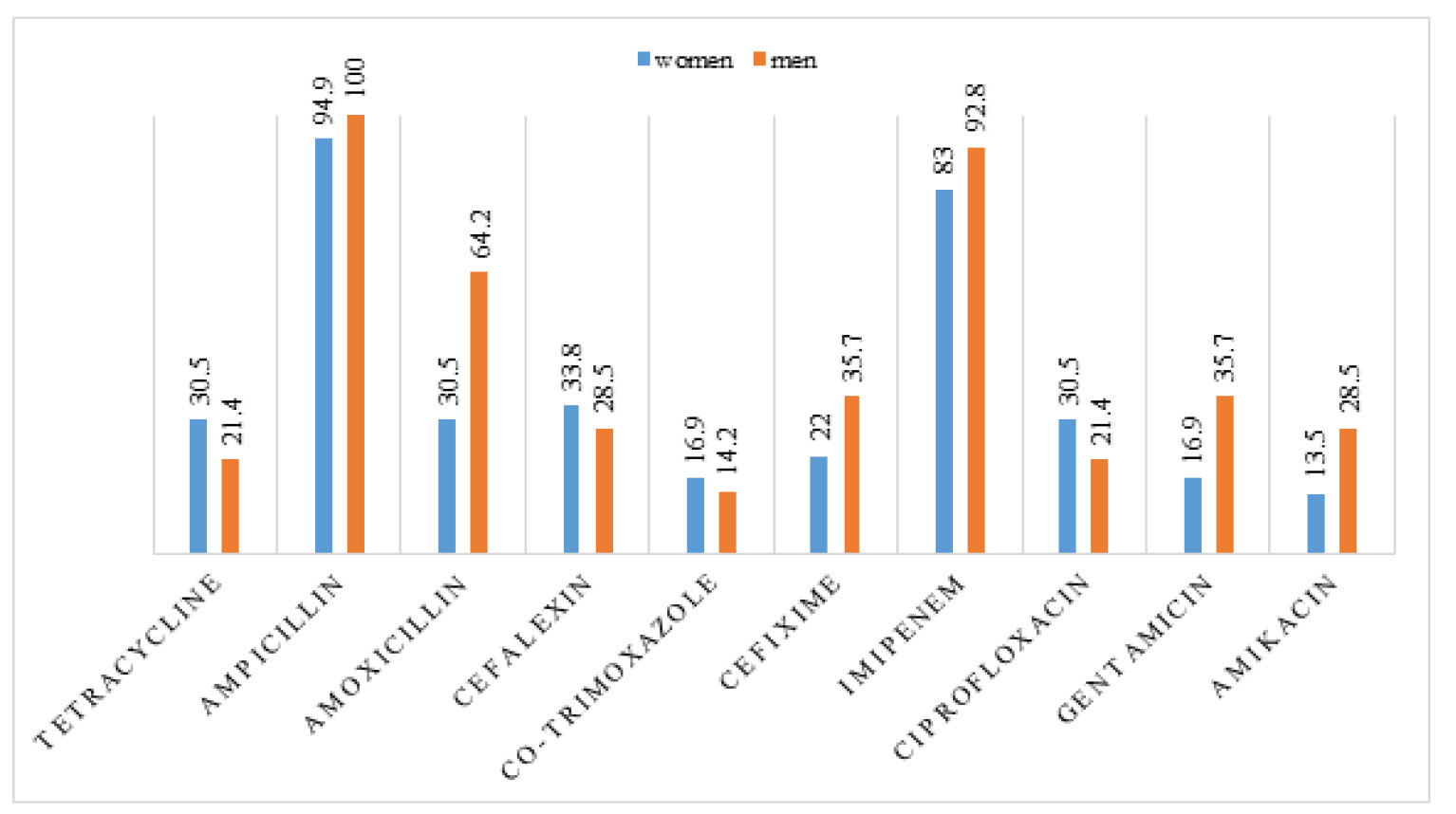

Figure 1. The percentage of antibiotic resistance by gender.
3.2. Gene pattern characterization
The findings obtained from this investigation demonstrate that the occurrence of biofilm-producing genes in urine samples was as follows: the sfa, fimH, and pap genes was 69.9%, 86.3%, and 89% respectively. Furthermore, the frequency of β-lactamase genes in clinical samples was as follows: blaSHV, blaTEM, and blaCTX-M genes was 50.7%, 90.4%, and 79.5%, respectively. The PCR products of genes from E. coli isolates are shown in Figures 2 and 3. A notable discrepancy was observed in the prevalence of biofilm genes (pap and fimH) in relation to gender (P<0.05). The statistical analysis revealed significant associations between the resistant against Amoxicillin (P=0.04) and tetracycline (P=0.05) of the blaSHV gene in the UPEC isolates. Furthermore, the statistical analysis indicated significant connections between the resistant against Amoxicillin (P=0.02) and Gentamicin (P=0.04) of the blaCTX-M gene, along with critical associations between Ampicillin (P=0.001) and blaTEM in the UPEC isolates.
Figure 2. Multiplex PCR Amplification of pap, fimH, sfa from E.coli isolates. 100bp DNA ladder.
Figure 3. Multiplex PCR Amplification of blaSHV, blaTEM, and blaCTX-M genes from E.coli isolates. 100bp DNA ladder.
Discussion
Research has demonstrated that E. coli is the most prevalent factor in the occurrence of urinary tract infections (UTIs) among both ambulatory individuals and those hospitalized. This discrepancy can be attributed to the anatomical differences between the male and female genital tracts, particularly the shorter length of the female urethra, which facilitates access for pathogenic species such as E. coli to the bladder. In terms of microbial expansion, the position of the female urethral orifice, which is in close proximity to the vaginal and anal areas, contributes to the less demanding action by the microbes to reach the urinary tract area ( 21 ). In the present study, a comprehensive set of 73 isolates belonging to the E. coli species were analyzed, revealing the presence of the pap gene in 89% of isolates, the fimH gene in 86.3% of isolates, and the sfa gene in 69.9% of isolates. Furthermore, the prevalence of the beta- lactamase gene blaSHV, blaTEM, and blaCTX-M were found to be 50.7%, 90.4%, and 79.5%, respectively. The antibiotic resistance patterns exhibited that the majority of the isolates demonstrated resistance to Ampicillin, Imipenem, and Amoxicillin, respectively. In a report by Yazdi et al. ( 22 ), the frequency of the fim, pap, and sfa genes was 100%, 79%, and 69%, respectively, which was close to the results of the current investigation. In a further major study, Saki et al. ( 23 ) stated the prevalence of biofilm genes pap, fimH, and sfa as 96.6%, 93.3%, and 4.6%, respectively, among which the prevalence of fimH and pap genes are close to this paper's results. In a separate study by Naziri et al. ( 24 ), 100% of ESBL-producing strains were found that 42.5% of isolates contained the blaCTX-M gene and 48.1% contained the blaTEM gene. Tiba et al. ( 26 ) conducted a study on 162 isolates of uropathogenic E. coli in Brazil, reporting frequencies of 27.8% for the pap gene and 6.2% for the sfa gene. In 2006, Arisoy et al. ( 27 ) published a paper in which 161 isolates of uropathogenic Escherichia coli were examined and the frequency of sfa and pap genes were calculated as 6.2% and 28.9%, respectively. Cristea et al. ( 28 ) observed that 19.7% of E. coli isolates contained the gene blaSHV. Additionally, Sadeghi et al. ( 29 ) noted that 38.8% of isolates carried the gene blaCTX-M. A plethora of studies have demonstrated that the prevalence of antibiotic-resistant E. coli is influenced by geographical location and biological patterns. Consequently, the prescription of common antibiotics for such bacterial infections varies from one geographical area to another, resulting in divergent study outcomes worldwide. Consequently, investigating the change of antibiotic resistance patterns over specific periods can be very efficient in the treatment of urinary tract infections (UTIs). The organization of pathogenicity and urinary contamination is a prerequisite for uropathogenic Escherichia coli strains to interact with their target location, and the fimbriae qualities play a critical role in this association. The study shows that out of the three examined qualities, the fimH and pap qualities were the most prevalent in this study. As urinary tract infection is a prevalent infection in healthcare facilities, it is crucial to conduct in-depth research on antimicrobial resistance due to the overuse of antimicrobials. This research aims to develop a vaccine against such fimbriae.
Acknowledgment
None.
Authors' Contribution
Literature review and research writing, including reviewing and editing, supervision, methodology, project administration, conceptualization, studies analysis, and investigation: A.S.B., S.H.N., N.S.
Writing of the original draft, preparation, reviewing and editing, and methodology: N.S., N.O., investigation.
Validation and reviewing: M.V., M.M.
Ethics
Not Applicable.
Conflict of Interest
The authors have declared that there is no conflict of interest.
Data Availability
All findings derived or examined throughout the course of this investigation have been encompassed within the confines of this published article.
References
- Munkhdelger Y, Gunregjav N, Dorjpurev A, Juniichiro N, Sarantuya J. Detection of virulence genes, phylogenetic group and antibiotic resistance of uropathogenic Escherichia coli in Mongolia. The Journal of Infection in Developing Countries. 2017; 11: 51-57.
- Sarowska J, Futoma-Koloch B, Jama-Kmiecik A, Frej-Madrzak M, Ksiazczyk M, Bugla-Ploskonska G, Choroszy-Krol I. Virulence factors, prevalence and potential transmission of extraintestinal pathogenic Escherichia coli isolated from different sources: recent reports. Gut pathogens. 2019; 11:1-6.
- Borchaloee, A. S. Investigating Differences between Virulence Factors of Escherichia coli and Pseudomonas aeruginosa in Causing Urinary Tract Infections. I J Infectious Disea. 2023; 4: 1-8.
- Baby S, Karnaker VK, Geetha R. Adhesins of uropathogenic Escherichia coli (UPEC). Int J Med Microbiol Trop Dis. 2016; 1:10-18.
- Dadi BR, Abebe T, Zhang L, Mihret A, Abebe W, Amogne W. Distribution of virulence genes and phylogenetics of uropathogenic Escherichia coli among urinary tract infection patients in Addis Ababa, Ethiopia. BMC infectious diseases. 2020; 20:1-2.
- Frömmel U, Lehmann W, Rödiger S, Böhm A, Nitschke J, Weinreich J, Groß J, Roggenbuck D, Zinke O, Ansorge H, Vogel S. Adhesion of human and animal Escherichia coli strains in association with their virulence-associated genes and phylogenetic origins. Applied and environmental microbiology. 2013; 79:5814-5829.
- Sadiq FA, Burmølle M, Heyndrickx M, Flint S, Lu W, Chen W, Zhao J, Zhang H. Community-wide changes reflecting bacterial interspecific interactions in multispecies biofilms. Crit Rev Microbiol. 2021; 47:338-58.
- Naziri Z, Kilegolan JA, Moezzi MS, Derakhshandeh A. Biofilm formation by uropathogenic Escherichia coli: a complicating factor for treatment and recurrence of urinary tract infections. Journal of Hospital Infection. 2021; 117:9-16.
- Usein CR, Damian M, Tatu-Chitoiu D, Capusa C, Fagaras R, Tudorache D, Nica M, Le Bouguénec C. Prevalence of virulence genes in Escherichia coli strains isolated from Romanian adult urinary tract infection cases. J Cell Mol Med. 2001; 5:303-310.
- Schwartz DJ, Conover MS, Hannan TJ, Hultgren SJ. Uropathogenic Escherichia coli superinfection enhances the severity of mouse bladder infection. PLoS Pathog. 2015.
- Abe CM, Salvador FA, Falsetti IN, Vieira MA, Blanco J, Blanco JE, Blanco M, Machado AM, Elias WP, Hernandes RT, Gomes TA. Uropathogenic Escherichia coli (UPEC) strains may carry virulence properties of diarrhoeagenic E. coli. FEMS Immunol Med Microbiol. 2008; 52:397-406.
- Nys S, Van Merode T, Bartelds AI, Stobberingh EE. Antibiotic treatment and resistance of unselected uropathogens in the elderly. International journal of antimicrobial agents. 2006; 27:236-241.
- Pitout JD, Nordmann P, Laupland KB, Poirel L. Emergence of Enterobacteriaceae producing extended- spectrum β-lactamases (ESBLs) in the community. Journal of antimicrobial chemotherapy. 2005; 56:52-9.
- Demirel I, Kinnunen A, Önnberg A, Söderquist B, Persson K. Comparison of host response mechanisms evoked by extended spectrum beta lactamase (ESBL)-and non-ESBL- producing uropathogenic E. coli. BMC microbiology. 2013; 13:1-9.
- Yamamoto S, Terai A, Yuri K, Kurazono H, Takeda Y, Yoshida O. Detection of urovirulence factors in Escherichia coli by multiplex polymerase chain reaction. FEMS Immunol Med Microbiol. 1995; 12:85-90.
- Struve C, Krogfelt KA. In vivo detection of Escherichia coli type 1 fimbrial expression and phase variation during experimental urinary tract infection. Microbiol. 1999; 145:2683-2690.
- Le Bouguenec C, Archambaud M, Labigne A. Rapid and specific detection of the pap, afa, and sfa adhesin- encoding operons in uropathogenic Escherichia coli strains by polymerase chain reaction. J Clin Microbiol. 1992; 30:1189-1193.
- Shah HA, Syed A, Bhat MA, Kakru DK, Farooq S, Qureshi S, et al. Genomic Determinants and Antimicrobial Resistance Pattern of Clinical Isolates of Extended Spectrum Beta Lactamase (ESBL) Producing Escherichia coli. J Pure Appl Microbiol. 2023; 17(3):1679-1690.
- Fang H, Lundberg C, Olsson-Liljequist B, et al. Molecular epidemiological analysis of Escherichia coli isolates producing extended-spectrum b-lactamases for identification of nosocomial outbreaks in Stockholm, Sweden. J Clin Microbiol. 2004; 42:5917-5920.
- Monstein HJ, Ostholm-Balkhed Aֵ, Nilsson MV, Nilsson M, Dornbusch K, Nilsson LE. Multiplex PCR amplification assay for the detection of blaSHV, blaTEM and blaCTX-M genes in Enterobacteriaceae. Apmis. 2007; 115:1400-1408.
- Rahdar M, Rashki A, Miri HR, Ghalehnoo MR. Detection of pap, sfa, afa, foc, and fim adhesin-encoding operons in uropathogenic Escherichia coli isolates collected from patients with urinary tract infection. Jundishapur J Microbiol. 2015; 8: e22647.
- Yazdi M, Bouzari M, Ghaemi EA. Detection of fim, pap, sfa and afa adhesin-encoding operons in Escherichia coli strains isolated from urinary tract infections. Medical Laboratory Journal. 2018; 12:10-15.
- Saki A, Mirzaei M. Frequency of fimberial virulence genes (fim, pap, sfa) in Escherichia coli isolated from the patients with urinary tract infections from selective hospitals of Tehran, Boroujerd and sanandej citu in 2015-2016. Journal of Shahid Sadoughi University of Medical Sciences. 2017; 24: 913-923.
- Naziri Z, Derakhshandeh A, Borchaloee AS, Poormaleknia M, Azimzadeh N. Treatment failure in urinary tract infections: a warning witness for virulent multi-drug resistant ESBL-producing Escherichia coli. Infection and drug resistance. 2020;1839-1850.
- Habeeb MA, Sarwar Y, Ali A, Salman M, Haque A. Rapid emergence of ESBL producers in E. coli causing urinary and wound infections in Pakistan. Pak J Med Sci. 2013; 29: 540-544.
- Tiba MR, Yano T, Leite DDS. Genotypic characterization of virulence factors in Escherichia coli strains from patients with cystitis. Rev Inst Med Trop. 2008; 50 :255- 260.
- Arisoy M, Ayser D, Ekim M, Ozel D, Kose S K, Ozsoy E D, et al. Detection of virulence factors of E.coli from children by Duplex PCR. Int J Clin Pract. 2005; 60: 170-73.
- Cristea VC, Gheorghe I, Barbu IC, et al. Snapshot of phylogenetic groups, virulence, and resistance markers in Escherichia coli uropathogenic strains isolated from outpatients with urinary tract infections in Bucharest, Romania. BioMed Res Int. 2019;5712371.
- Sadeghi M, Sedigh Ebrahim-Saraie H, Mojtahedi A. Prevalence of ESBL and AmpC genes in E. coli isolates from urinary tract infections in the north of Iran. New Microbes New Infect. 2021; 45: 100947.
