Development and validation of a microwave-assisted digestion technique as a rapid sample preparation method for the estimation of selenium in pharmaceutical dosage forms by ICP-OES

Document Type : Original Articles

Authors

GITAM Institute of Pharmacy GITAM (Deemed to be University) Gandhi Nagar, Rushikonda, Visakhapatnam-530 045 Andhra Pradesh, India

10.32592/ARI.2024.79.1.68

Abstract

Selenium is a class 2B element according to ICH Q3D guidelines. Selenium sulfide is an anti￾infective agent with antifungal and antibacterial properties used to treat dandruff and seborrheic
dermatitis. The literature survey revealed that most of the analytical techniques to estimate
selenium were found to be time-consuming and/or required high skill. The process involved
identifying the isotopes, selecting the measuring approach, and optimizing a typical
microwave-aided digesting procedure. To the samples, ammonium hydrogen difluoride, water,
and concentrated nitric acid were added. The confirmed microwave digestion program was a
two-step program where in the initial step, the samples were ramped at 200°C for 20 minutes
and held for 5 minutes. Later, samples were cooled and neutralized by boric acid, then ramped
for 20 minutes to a temperature of 180°C and held for 10 minutes. Selenium was estimated at
196.090 nm by ICP-OES. System suitability was run before initiating analysis to ensure that
system performance was consistent. Analytical validation parameters like the specificity of the

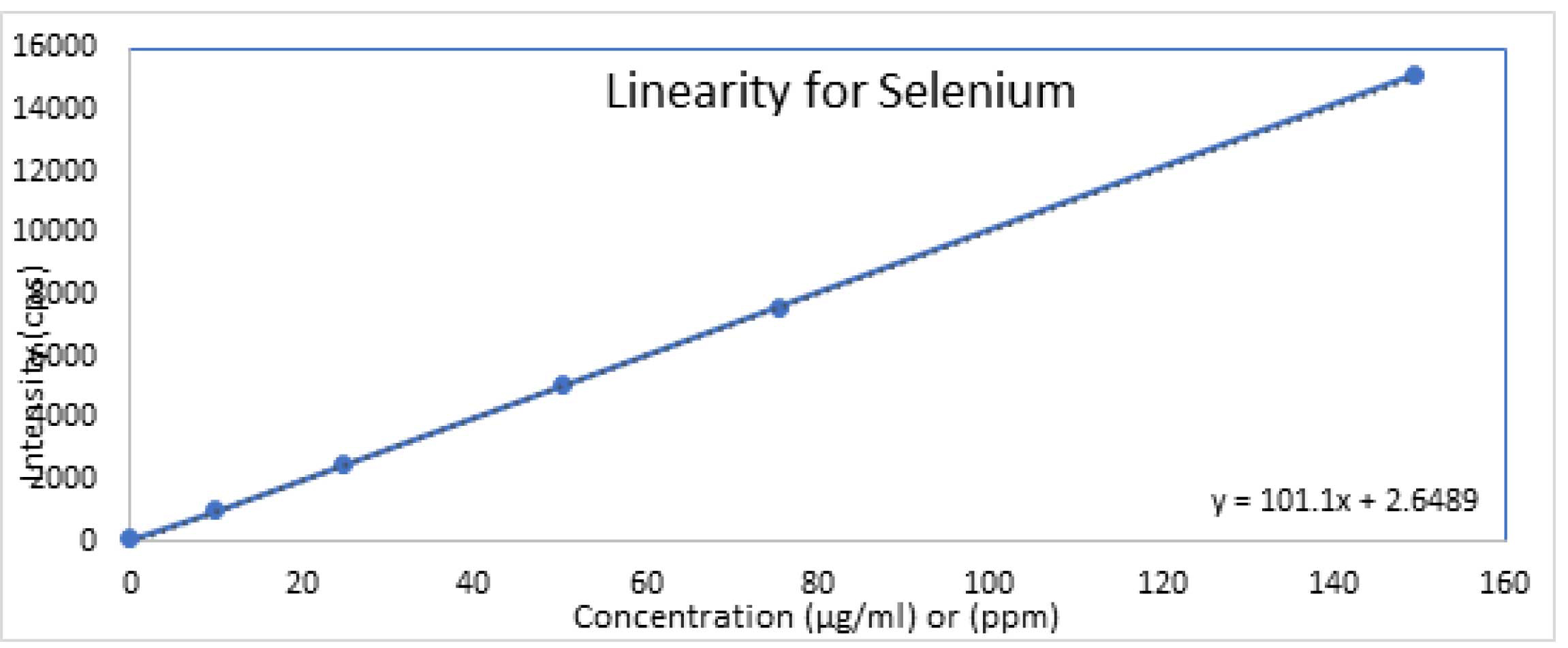

method were demonstrated at 196.090nm, linearity was proven from 10 ppm to 150 ppm of
selenium concentration, the detection limit was 1.28 ppm and the limit of quantification was

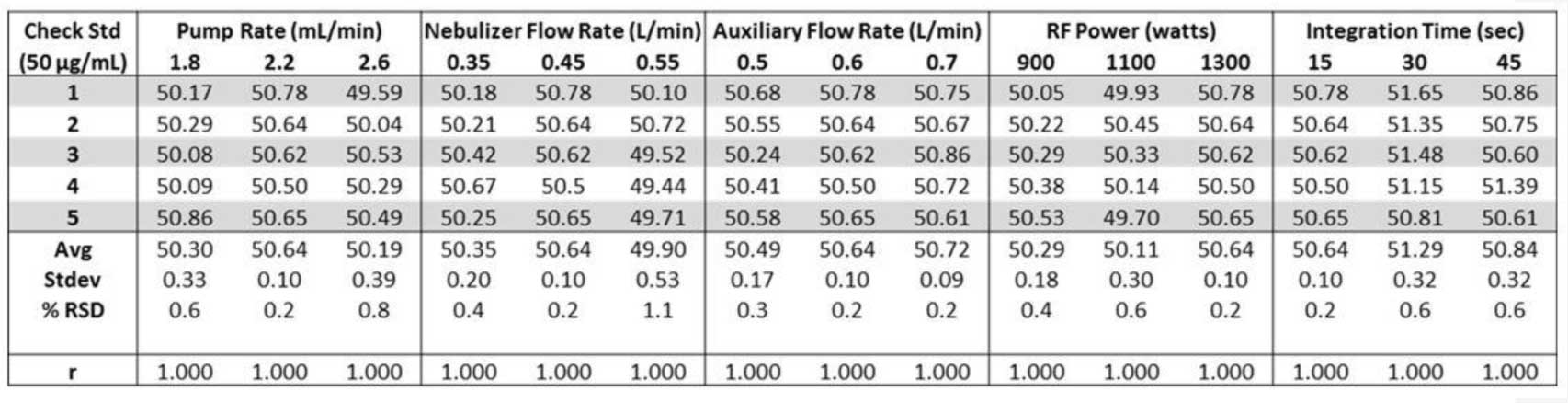

3.89 ppm. Robustness was confirmed for small changes to ICP-OES operating conditions. The
method's precision was demonstrated by analyzing the percentage relative standard deviation
for six injections was found to be less than 2.0%. Accuracy was confirmed from 10 ppm to 150
ppm, and all the samples were found to be within the range of 95-105%. A common
microwave-assisted digestion technique was developed and the same was validated. The
preciseness, specificity, linearity, accuracy, and robustness of the method for estimating
selenium in selenium sulfide drug substances and various pharmaceutical dosage forms were
demonstrated. This newly developed microwave-assisted digestion technique has optimum
sensitivity, highly reproducible and time saving than the existing methods. This method can be
applied to numerous matrices for a finished dosage of selenium sulfide formulations.

Keywords


References
1. Alexander J, Chapter 29 - Selenium, Editor(s):
Gunnar F. Nordberg, Max Costa, Handbook on the
Toxicology of Metals (Fifth Edition), Academic
Press, 2022, Pages 729-771, ISBN 9780128229460
Doi: 10.1016/B978-0-12-822946-0.00035-0
2. International Council for Harmonization of
Technical Requirements for Pharmaceuticals for
Human Use. ICH harmonized guideline: guideline
for elemental impurities – Q3D (R1), European
Medicines Agency, Amsterdam, 2019.
3. Soruraddin MH, Heydari R, Puladvand M, Zahedi
MM. A new spectrophotometric method for
determination of selenium in cosmetic and
pharmaceutical preparations after preconcentration
with cloud point extraction. Int J Anal Chem
[Internet]. 2011 vol. 2011, Article ID 729651, 8
pages. Doi: /10.1155/2011/729651
4. Ramadan AA, Mandil H, Ozoun A. Determination
of Se (IV) in Pharmaceuticals by Using Different
Operating Modes of Pulse Anodic Stripping
Voltammetric Analysis with Methylene BlueNafion Modified Gold Electrode. Asian J. Chem.
2013;25(6). Doi: 10.14233/ajchem.2013.13850
5. Stoica AI, Babaua GR, Iorgulescu EE, Marinescu
D, Baiulescu GE. Differential pulse cathodic
stripping voltammetric determination of selenium
in pharmaceutical products. J Pharm Biomed Anal
[Internet]. 2002;30(4):1425–9. Available from:
Doi: 10.1016/S0731-7085(02)00454-5
6. Kumar KS, Suvardhan K, Kang SH. Facile and
sensitive determination of selenium (IV) in
pharmaceutical formulations by flow injection
spectrophotometry. J Pharm Sci [Internet].
2008;97(5):1927–33. Available from: Doi:
10.1002/jps.21175.
7. Sanz J, Gallarta F, Galbán J, Castillo JR.
Determination of selenium by hydride generation
ultraviolet-visible molecular absorption
spectrometry with diode-array detection. Analyst
[Internet]. 1988;113(9):1387–91. Available from:.
Doi: 10.1039/AN9881301387
8. Ma Y, Xiang F, Jin W, Liao N, Yu L. Selenium
accumulation in mycelia of Flammulina velutipes
during fermentation determined by RP-HPLC.
Zeitschrift für Naturforschung C. 2009;64(5-
6):382-6. Doi: 10.1515/znc-2009-5-613
9. Kulikov AU. Determination of selenium (IV) in
pharmaceuticals and premixes by micellar liquid
chromatography. J. Pharm. Biomed. Anal.
2007;43(4):1283-9. Doi:
10.1016/j.jpba.2006.10.041
10. Kazi TG, Kolachi NF, Afridi HI, Brahman KD,
Shah F. Determination of total selenium in
pharmaceutical and herbal supplements by hydride
generation and graphite furnace atomic absorption
spectrometry. J. AOAC Int. 2014;97(6):1696-700.
Doi: 10.5740/jaoacint.12-413
11. Gamiz-Gracia L, De Castro ML. Determination of
selenium in nutritional supplements and shampoos
by flow injection-hydride generation-atomic
fluorescence spectrometry. Talanta.
1999;50(4):875-80. Doi: 10.1016/S0039-
9140(99)00171-X
12. Lavi N, Mantel M, Alfassi ZB. Determination of
selenium in biological materials by neutron
activation analysis. Analyst. 1988;113(12):1855-9.
DOI: 10.1039/AN9881301855
13. Chan CC, Sadana RS. Determination of arsenic and
selenium in environmental samples by flowinjection hydride generation atomic absorption
spectrometry. Anal. Chim. Acta. 1992 Dec
15;270(1):231-8. Doi: 10.1016/0003-
2670(92)80112-K
82 Pal and Raja / Archives of Razi Institute, Vol. 79, No. 1 (2024) 68-82
14. Bujdoš M, Kubová J, Streško V. Problems of
selenium fractionation in soils rich in organic
matter. Anal. Chim. Acta. 2000;408(1-2):103-9.
Doi: 10.1016/S0003-2670(99)00845-4
15. García JB, Krachler M, Chen B, Shotyk W.
Improved determination of selenium in plant and
peat samples using hydride generation-atomic
fluorescence spectrometry (HG-AFS). Anal. Chim.
Acta. 2005;534(2):255-61. Doi:
10.1016/j.aca.2004.11.043
16. Smrkolj P, Stibilj V. Determination of selenium in
vegetables by hydride generation atomic
fluorescence spectrometry. Anal. Chim. Acta.
2004;512(1):11-7. Doi: 10.1016/j.aca.2004.02.033
17. Sabé R, Rubio R, Garcı́a-Beltrán L. Selenium
determination in urine with atomic fluorescence
detection. Anal. Chim. Acta. 2001;436(2):215-21.
Doi: 10.1016/S0003-2670(01)00966-7
18. De Brätter VN, Recknagel S, Gawlik D. Speciation
of Se, Fe and Zn in human milk whey: the use of
instrumental neutron activation analysis (INAA) to
corroborate element profiles measured with
inductively coupled plasma atomic emission
spectrometry (ICP-AES). Fresenius J. Anal. Chem.
1995;353:137-42. Doi:10.1007/s0021653530137
19. Wen S, Zhu X, Wei Y, Wu S. Cloud point
extraction-inductively coupled plasma mass
spectrometry for separation/analysis of aqueousexchangeable and unaqueous-exchangeable
selenium in tea samples. Food Anal. Methods.
2013;6:506-11. Doi: 10.1007/s12161-012-9472-9
20. Bakirdere S, Volkan M, Ataman OY. Speciation of
selenium in supplements by high performance
liquid chromatography-inductively coupled
plasma-mass spectrometry. Anal. Lett.
2015;48(9):1511-23. Doi:
10.1080/00032719.2014.986679
21. Mazej D, Falnoga I, Veber M, Stibilj V.
Determination of selenium species in plant leaves
by HPLC–UV–HG-AFS. Talanta. 2006;68(3):558-
68. Doi: 10.1016/j.talanta.2005.04.056
22. USP Selenium Sulfide. In: USP–NF. Rockville,
MD: USP. 2022.
DOI: 10.31003/USPNF_M74820_01_01
23. USP Selenium Sulfide Topical Suspension In:
USP–NF. Rockville, MD: USP.2022.
DOI: 10.31003/USPNF_M74830_01_01
24. National Center for Biotechnology Information
(2023). PubChem Annotation Record for
SELENIUM, ELEMENTAL, Source: Hazardous
Substances Data Bank (HSDB). Retrieved March
23, 2023 from https://pubchem.ncbi.nlm.nih.gov.
25. O'Hara MJ, Kellogg CM, Parker CM, Morrison SS,
Corbey JF, Grate JW. Decomposition of diverse
solid inorganic matrices with molten ammonium
bifluoride salt for constituent elemental analysis.
Chem Geol. 2017;466:341-51. Doi:
10.1016/j.chemgeo.2017.06.023
