Numerical Study of a Centrifugal Platform for the Inertial Separation of Circulating Tumor Cells Using Contraction-Expansion Array Microchannels

Document Type : Original Articles


1 Faculty of New Sciences and Technologies, University of Tehran, Tehran, 14395 -1561, Iran

2 Micro/Nanofabrication Technologies Lab, Faculty of New Sciences and Technologies, University of Tehran, Tehran, 14395 -1561, Iran


Label-free inertial separation of the circulating tumor cells (CTCs) has attracted significant attention recently. The present study proposed a centrifugal platform for the inertial separation of the CTCs from the white blood cells. Particle trajectories of the contraction-expansion array (CEA) microchannels were analyzed by the finite element method. Four expansion geometries (i.e., circular, rectangular, trapezoidal, and triangular) were compared to explore their differences in separation possibilities. Different operational and geometrical parameters were investigated to achieve maximum separation efficiency. Results indicated that the trapezoidal CEA microchannel with ten expansions and a 100 µm channel depth had the best separation performance at an angular velocity of 100 rad/s. Reynolds number of 47 was set as the optimum value to apply minimum shear stress on the CTCs leading to 100% efficiency and 95% purity. Furthermore, the proposed system was simulated for whole blood by considering the red blood cells.


Main Subjects

1. Introduction

According to the American Cancer Society reports for 2025, 16 million people will be diagnosed with cancer ( 1 ). Circulating tumor cells (CTCs) are the main markers in the primary detection of cancer metastasis, analyses of cancer progression, and exploration of suitable treatment techniques. The CTCs dissociate from the initial tumor, travel through the bloodstream to another organ, and form new tumors ( 2 ). As reported by the World Health Organization, 30% of cancer deaths can be prevented with early diagnosis. Therefore, the separation and analysis of CTCs is a crucial step in cancer treatment ( 3 , 4 ). Microelectromechanical sensors ( 5 , 6 ) and actuators ( 7 , 8 ) are suitable in the biomedical field for different applications ( 9 ). Microfluidic, as a part of microelectromechanical systems (MEMS), is extensively utilized in point-of-care (POC) cell separation devices owing to its desirable properties, such as low required sample amount, excellent sensitivity, and portability ( 10.

Since CTCs are rare, isolating these cells requires accurate and efficient systems, with high purity and throughput, and minimum damage to the cell ( 11 ). Lab-on-chip systems (LOC) allow the separation of these rare particles based on their size in both active and passive methods ( 12 ). Since active processes take advantage of external forces, their complexity and difficult integration into microfluidic systems make them an incompatible choice for LOD tests. However, passive methods of particle separation rely on microchannel geometry and hydrodynamic forces ( 13 ). Among the various passive methods, inertial microfluidic is one of the most considered methods for separating CTCs because of its substantial features, including high throughput, simple structure, label-free, and low cost. Compared to the other size-based separation approaches, inertial microfluidics has low purity considering the size overlapping of the CTCs and the other cells; however, designing different channel geometries ( 14 , 15 ) with specific dimensions can achieve high purity in this technique for CTC separation. In inertial focusing, suspended particles within a fluid travel through fluid flow and can be ordered in specific positions. This behavior occurs because of inertial Lift (FL) and Dean Drag (FD) forces in the channel and can be determined via channel shape and fluid properties ( 16 ). Similar to the curved shape channels, because of the abrupt change of the cross-section in the contraction-expansion arrays (CEAs) channel, fluid streamlines are curved when they get in the expansion zone, producing two vortexes at the bottom and top of the channel cross-section area, which is well-known as Dean flow. Lee, Park ( 17 ) proposed asymmetric contraction expansion arrays to isolate MCF7 from blood components. Their experimental work achieved a recovery rate of 99.1% with a throughput of 1.1 × 10 8 cell/min. Che, Yu ( 18 ) used a CEA microchannel to isolate CTCs with efficiency.

Centrifugal platforms, also called lab-on-disk (LOD), are novel technologies in microfluidics, in which microchips are designed on a disk. In these platforms, the fluid is driven by the intrinsic forces of the rotating disk and simplifies these systems due to the lack of need for external connections and pumps ( 19 ). Lab-on-disk has extensively been studied for the separation of blood components, such as plasma ( 20 ), separation of CTC by functionalizing these cells with magnetic microbeads ( 21 ), and fluid mixing ( 22 ). An LOD device provides some attractive advantages for particle separation, such as an inexpensive setup, the ability to integrate multiple operating units, and process automation. The use of size-based inertial particle separation in LOD systems is an efficient and label-free method. Morijiri, Sunahiro ( 23 ) developed a cell separation method called pinched flow fractionation in a centrifugal platform for separating stand on density and particle size. Maria, Gerson ( 24 ) designed spiral asymmetric channels to study the focusing of particles in a system for the separation of silica and polystyrene particles with the same size ( 21 ) and two different densities with high efficiencies. In another study ( 25 ), the researchers used the same channel design for circulating tumor cells (MCF7s) focusing on a LOD system. It was found that compared to LOC systems, in LOD devices, particle focusing occurs at low Reynolds numbers due to the centrifugal (FC) and Coriolis (FCor) forces. Shamloo and Mashhadian ( 26 ) examined the focusing behavior of polystyrene particles in a serpentine microchannel on a centrifugal platform.

The CEA channel employs inertial forces in fixed directions and magnitudes to separate and focus particles. Recently, Al-Halhouli, Doofesh ( 27 ) conducted contraction-expansion arrays for particle focusing in a LOD system with trapezoidal chambers. Nasiri, Shamloo ( 28 ) considered square-shaped expansions to separate CTCs from white blood cells (WBCs). They observed a separation efficiency of at an angular velocity of 2,000 RPM (ω = 204.9 rad/s). Table 1 outlines the major characteristics of particle separation and focusing by integrating passive inertial microfluidic in the LOD systems. To the best of our knowledge, few studies have been published on integrating the inertial separation unit in the centrifugal platform, despite its numerous advantages and a high potential for POC devices.

Geometry Cross-section Width (µm) Height (µm) Micro-particles and their sizes Distance from disk center Rotational speed or frequency of disk Separation efficiency Ref
Serpentine channel with three corner angels (90°, 85°, 75°) Rectangular 200 40 PS: 8 µm, 9.9 µm and 13 µm 3 cm 240 rad/s-500 rad/s Best focusing performance for 90° ( 26 )
Pinch flow fractionation and curved channel with 12 outlets Rectangular 350 10 Fluorescent PS: 3 µm and 5 µm 15 mm 750 RPM 98% silica at outlet 5 ( 23 )
Silica microbeads with 5 µm 86% 3 µm PS at outlets 10, 11, and 12
Square contraction-expansion arrays Square 100 100 WBC: 10 µm 3 cm 2000 RPM 90% separation ( 28 )
CTC: 20 µm
Trapezoidal contraction-expansion arrays Rectangular 120 50 PS: 5 µm and 10 µm 8 mm 2000 RPM 98.7% focusing of 10 µm ( 27 )
93.75% focusing for 5 µm
Asymmetric serpentine with small and large curves Rectangular 350 and 650 72 Functionalized MCF7 (breast cancer cells) and PS beads 12 mm 3.75 Hz 92.5% focusing at Reynolds number of 11 ( 25 )
Asymmetric serpentine curved channel with a 6-8 turn Rectangular 350-650 72 PS and silica: 21 µm N/A 3.75-6.25-8.75 Hz High separation at 3.75 Hz ( 24 )
PS: Polystyrene; WBC: White blood cell; CTC: Circulating tumor cell
Table 1.Main characteristics of the reported in LOD systems for the particle/cell inertial separation/focusing

outlines the major characteristics of particle separation and focusing by integrating passive inertial microfluidic in the LOD systems. To the best of our knowledge, few studies have been published on integrating the inertial separation unit in the centrifugal platform, despite its numerous advantages and a high potential for POC devices.

Investigation of a device using numerical simulation is necessary to reduce the fabrication cost and experimental errors ( 29 ). In LOD systems, simulation is an excellent guide for researchers to analyze particle behavior ( 30 ). The present study aimed to utilize two cell isolation techniques to find out an ideal POC device that could enjoy the advantages of both inertial and centrifugal microfluidics. In this research, the separation characteristics of different CEA channel geometries were investigated using numerical simulations. Particle trajectories were obtained for different expansion arrays, and separation parameters were compared. For the best channel geometry, various parameters were evaluated to determine the desirable separation conditions.

Figure 1 shows an illustration of the separation mechanism in the proposed system. Blood is injected into the inlet chamber without the need for a pump. The system starts to rotate higher than the disk burst frequency, and after that the separation is completed, the samples are collected from the designed outlets.

Figure 1. Graphical abstract

2. Materials and Methods

2.1. Microchannel Geometry

The present study investigated the inertial separation of CTCs from WBCs in four CEA microchannel geometries integrated into an LOD system. Figure 2 shows the schematic of the trapezoidal arrays microchannel. The simple-structure microchannel has 21.55 mm length with a square cross-section and consists of 1 inlet and 2 outlets. The microchannel is located at a 3-cm distance from the disk's center. Incubated blood containing WBC and CTCs enters the microchannel without the need for a pump. Table 2 presents the geometrical parameters for four microchannel types. As depicted in figure 3, the microchannel unit has a 900 µm length.

Figure 2. Illustration of the separation microchannel with designed parameres

Parameter (µm) a b c w h
Trapezoidal 500 1100 500 100 100
Circular - 1100 450 100 100
Triangular - 1100 650 100 100
Rectangular 900 1100 600 100 100
Table 2.Microchannel dimensions for four expansion geometries

Figure 3. Top view of the four contraction-expansion array micro-channels

2.2. Governing Equations

In LOD systems, the Centrifugal (FC) and Coriolis (FCor) forces drive the fluid in a rotating disk ( 31 ). On a rotating platform with a velocity of ω, the FC and FCor can be written as follows:

FC=ρfrω2 (1)

FCor=2ρfωU (2)

Where, ρf is a volume density for a fluid, r is a radial location, and U is the fluid's velocity. There is an Eulerian force in centrifugal platforms due to the change in angular velocity. Since in the present study ω is constant then amount of the Eulerian force is 0. Equations (1) and (2) in the Cartesian coordinates are expressed as follows ( 24 ):

ƒx=ρfω2x+2ρfωϑ (3)

ƒy=ρfω2y-2ρfωu (4)

ƒz=0 (5)

Where v and u are the fluid velocities in the y and x directions, respectively.

Despite the non-Newtonian behavior of the whole blood in the experimental separation of CTCs, these cells are mixed with diluted whole blood. Therefore, in numerical simulations, the use of a Newtonian fluid with water properties is acceptable. Governing equations for laminar Newtonian and incompressible fluid flow are the continuity Equation (Equation 6) for mass conservation and Navier-Stokes (Equation 7) Equations for momentum conservation ( 16 ):

.(ρfU)=0 (6)

ρfut+ρf(U.U)=-P+μ2U+ƒb (7)

Where U is the fluid velocity vector (m/s), P is the pressure (Pa), µ is the dynamic viscosity (N.s/m2) , and ƒb is the sum of all body forces (N.s/m3), which for a LOD system includes FC and FCor:

ƒb=FC+FCor (8)

In a LOD system, FC and FCor are also felt by the suspended particles in the fluid. In this case, the Equations of centrifugal force (1) and Coriolis force (2) for spherical particles with density, diameter, and velocity of ρp, a, and Up respectively, are expressed as following ( 28 ):

FC=πa3(ρp-ρƒ)6rω3 (9)

FCor=πa3(ρp-ρƒ)6Upω (10)

Where the subscripts p and f stand for particle and fluid, respectively.

Besides the centrifugal platform forces, particles feel FL and FD in different directions and amounts, relying on the velocity profile, particle size, fluid features, and channel dimensions. In this microfluidic device, the applied FL on the particles, which is the balance between shear-gradient and wall-induced FL, can be expressed as follows ( 32 ):

FL=CLρƒUmax2a4Dh2 (11)

Where Umax is the maximum fluid velocity, a is the particle diameter, and Dh denotes the hydrodynamic diameter of the channel defined as a , where w and h are the width and height of the micro-channel cross-section, respectively. CL is the dimensionless coefficient of lift force, which is related to the particle location across the channel cross-section while assuming an average value of 0.5 for rectangular cross-section. The channel Reynolds number represents the ratio of inertial forces over viscous forces. It is defined as ( 33 ):

Rec=ρƒUmaxDhμ (12)

Similar to the curved shape channels, because of the abrupt change of the cross-section in the CEA channels, fluid streamlines are curved when they get in the expansion zone, producing Dean Vortices at the bottom and top of the channel cross-section area. Using the Stokes drag equation, the applied FD on the particles can be calculated as the following:


Where UD is the mean velocity of the Dean flow for a channel with Rec and a radius of curvature R and can be determined as follows:

UD=1.8×10-4De1.63 (14)

FD=5.4×10-4πμDe1.63a (15)

The dimensionless number De=RecDh2R indicates the magnitude of the Dean flow.

To determine the motion of the particles, Newton's law of motion is solved ( 34 ):

mpd2rpdt2=FD+FL+FC+FCor (16)

Where mp is the particle mass and rp is a radial location vector.

2.3. Numerical Simulation

The COMSOL Multiphysics 5.5 software was utilized to perform the 3-dimensional simulations, and the Finite Element Method was employed to solve the Navier-Stokes equations. Table 3 summarizes the boundary conditions applied in the simulations. In laminar flow, FC and FCor are applied as body forces for fluid driving based on the platform's clockwise rotation, which is added to the Navier-Stokes equations as a volume force. The velocity fields resulted from the fluid flow analysis were used as the input velocity in particle tracing. The time-dependent study approach with a time step of 0.00001s was executed with an Eulerian method. In particle tracing, the dominant forces, including FD, FL, and FC and FCor, were added to the particles. The ρf and µ were considered to be 1,000 kg/m3 and 0.001 Pa.s, respectively. The simulation was performed for the incubated blood of lung cancer, stage-IV patient, with Lysis buffer (removed red blood cells [RBCs]). For the simulations, 60 particles, including 30 CTCs and 30 WBCs (which were placed randomly in the inlet), were used with a ρp of 1,050 kg/m3 and an average diameter of 20 µm and 10 µm based on an experimental study by Zhou, Kulasinghe ( 35 ). Since the blood samples are diluted in the blood cell separation experimental works ( 36 ), particle-particle interactions were neglected in these simulations. In addition to having convenient boundary conditions and performing a properly structured mesh, particles with different sizes are sorted based on the applied forces into two various outlets. In the introduced microchannel, particles' lateral migration strongly depends on the particle size; therefore, label-free separation of the CTCs from white blood cells is possible.

Physics Inlet Walls Outlet
Laminar Flow (spf) Normal flow P0=0 No-slip Suppress backflow P0=0
Particle tracing (fpt) Velocity field (spf) Bounce -
Table 3.Boundary conditions used in the performed simulations

3. Results and Discussion

3.1. Validation

To validate the simulations, our numerical method was used to simulate the experimental work reported for the inertial particle focusing on a LOD system Al-Halhouli, Doofesh ( 27 ). In this work, 10-μm polystyrene particles, after passing through the 30-mm channel, were focused and collected in outlet 1 (micro-chambers side) due to the hydrodynamic forces exerted by the trapezoidal micro-chambers. The particles' equilibrium position was shifted toward the sidewall with trapezoidal micro-chambers because the wall-induced lift force had vanished, leading the particle to move into the micro-chamber. The governing equations and boundary conditions were applied to the fluid flow and the particle tracing, and then the simulation was run. Figure 4 shows the collection of particles at the desired outlet (outlet 1).

Figure 4. Collection of the particles in outlet 1 (Redline is particle trajectory)

3.2. Mesh Independency

A structured uniform mesh was used to discretize the computational domain. Subsequently, the mesh independence analysis was performed. For each channel geometry, structured meshes with an average quality of 0.93 were used. The maximum radial velocity was demonstrated in a cross-section of the contraction zone for different grid numbers. It was observed that there was a small difference in the velocity value (error=0.085%) between 2,148,500 and 2,849,854 elements. Although an increase in the mesh elements did not change the evaluated measure, it expanded the computational time. Therefore, 2,148,500 was determined as the number of necessary elements to solve the simulation (Figure 5). Figure 6 depicts the mesh quality for the trapezoidal expansion arrays.

Figure 5. Mesh independency analysis for the maximum velocity value at different mesh elements

Figure 6. Channel mesh quality for 2,148,500 elements

3.3. Dean Vortex Formation

To ensure the vortex formation in four-channel types, Dean flow contours were obtained. Because of the abrupt change of the CEA microchannel cross-section, acceleration and deceleration of the flow velocity are acquired when the fluid enters the contraction and expansion zones ( 33 ). In centrifugal platforms, if Dean Vortices form in a longer part of the contraction zone of the microchannel, the Coriolis force, together with the Dean Flow, improves the secondary flow. Contraction zones with 1,200 µm lengths were considered in the present study. Figure 7 illustrates the Dean flow contours in the CEA microchannel at an angular velocity of 100 rad/s.

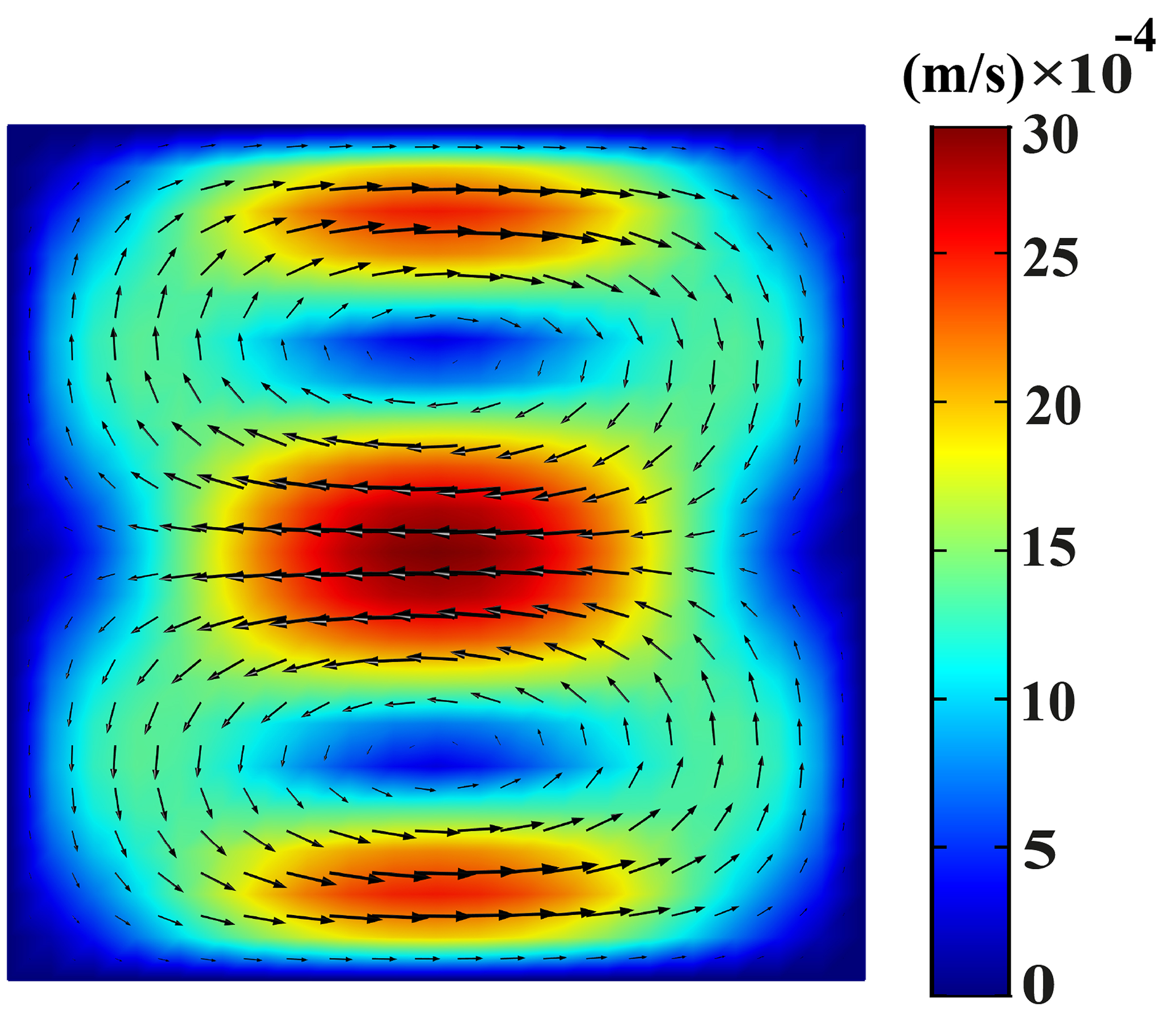

Figure 7. Dean Vortex formation at 30 µm of contraction region for CEA microchannel at 100 rad/s

3.4. Separation Parameters

The most common parameters for evaluating separation performance are purity and separation efficiency. Purity and separation efficiency can be defined as:

Purity=number of target cells in the target outlettotal cells (WBC+CTC) in the target outlet×100

separation efficiency=number of target cells in the target outlettatal number of targeted cells in the inlet×100

In simulations, it is possible to count two types of cells at the microchannel outlets and calculate separation parameters for the two different micro-channels. Figure 8 shows the comparison of two separate parameters for different expansion geometries. The contraction-expansion micro-channel provides a simple geometry for particles focusing and separation, compared to the spiral ( 24 ) and serpentine ( 26 ) micro-channels, which reduces the design and fabrication time and cost. Based on the results, the channel with trapezoidal expansions reaches 100% separation efficiency and 95% purity for CTCs, while the results are reverse for WBCs. Compared to the results of a previous study ( 28 ), which achieved 90% separation efficiency for CTCs at 2,000 RPM with the square expansion geometry, trapezoidal expansions showed 100 % efficiency at 1,000 RPM, which means lower shear stress on particles.

Figure 8. Separation efficiency and purity of WBCs and CTCs for different expansion shapes of microchannel at 100 rad/s

3.4.1. Effect of the Microchannel Geometry and Angular Velocity of the Disk on Particles Lateral Position

For the channel's best separation performance, lateral positions of the particles were measured near the channel outlets after ten expansions. Inertial particle separation of WBC and CTC particles was demonstrated by simulation in four microchannel types at four angular velocities. Dean flow in the contraction regions, inducing Dean Drag forces, acted on the particles depending on their size. On the other hand, since the velocity was fully developed and had a parabolic profile, particles experienced two kinds of FL (i.e., wall-induced and shear-gradient). Balancing between FL and FD determines the position of the particles. Figure 9 shows the lateral position of WBCs and CTCs for four microchannel types at different angular velocities. At high angular velocity, for all channel types, increasing the forces' acts on particles makes particles focused, decreasing the device performance. The CTCs, because of their larger size, experience greater inertial lift force than WBCs and can achieve equilibrium positions in a shorter time. As can be seen in figure 9 there was a substantial gap between the position of WBCs and CTCs in the trapezoidal expansions at 100 rad/s.

Figure 9. Lateral positions of the WBCs (◆ blue) and CTCs (▲ red) particles in four different micro-channels for the various angular velocities (error bars indicate the width of lateral positions); A) trapezoidal, B) circular, C) triangular, and D) rectangular expansion geometries

Particles experienced a smooth decrease and increase in wall-induced lift force when they entered and exited the trapezoidal expansions. Circular expansions are ideal array shapes for biological fluids, such as blood, which are likely to clog through the microchannel. Particles flow in the circular expansion microchannel more slowly, increasing the separation time. Therefore, a circular expansion microchannel is undesirable because it increases the exposure time to the particles and cell damage. The complete separation of CTCs and WBCs is obtained in triangular expansions microchannel at velocities of 150 rad/s and 200 rad/s. Moreover, based on the fluid flow analysis results, in triangular expansion arrays, the maximum velocity of the fluid is 10% more in the expansion region than in other arrays, which indicates a shorter separation time; however, high fluid velocity would make the possibility of cell damage by the high shear stress. Due to the sudden change in the wall-induced lift force, when particles enter and exit the rectangular expansions, they are arranged at wide positions, and as a result, the purity is reduced. Hence, it is concluded that when the Rec is constant, the trapezoidal CEA microchannel has advantages over the three micro-channels by the full separation of the CTC and WBC particles.

In the centrifugal platforms, the fluid velocity changes with the rotational velocity of the disk. Figure 10 depicts the radial velocity profiles for the different ω. To obtain the optimum ω for the disk with maximum separation efficiency, four different values of 50, 100, 150, and 200 rad/s were investigated. An increase in the Rec of the microchannel from 12.8 to 158, proportional to the rotational velocity from 50 rad/s to 200 rad/s, led to the observance of several separation patterns for the two particles' sizes. If the Rec is supposed lower than 12.8 (proportional to the ω = 50 rad/s), the FC and FCor are too low, and it cannot exert the dominant FL and FD for lateral migration of the cells. Therefore, particles travel in the channel with low velocity, and the separation time increases. However, it is observed that in Rec of higher than 47 (100 rad/s), due to the enhancement of the inertial forces, separation time reduces, nevertheless, all particles share a similar path. An increase in applied forces on the particles would possibly lead to particle damage and a reduction in particle viability at high velocities since according to Equation (11) FLUmax2 is directly relevant to the square of the maximum velocity along the x-axis. The best separation efficiency is obtained for the angular velocity of 100 rad/s and Rec of 47. The most crucial parameter for the CTC separation is viability; in this regard, the system should perform separation at low Rec.

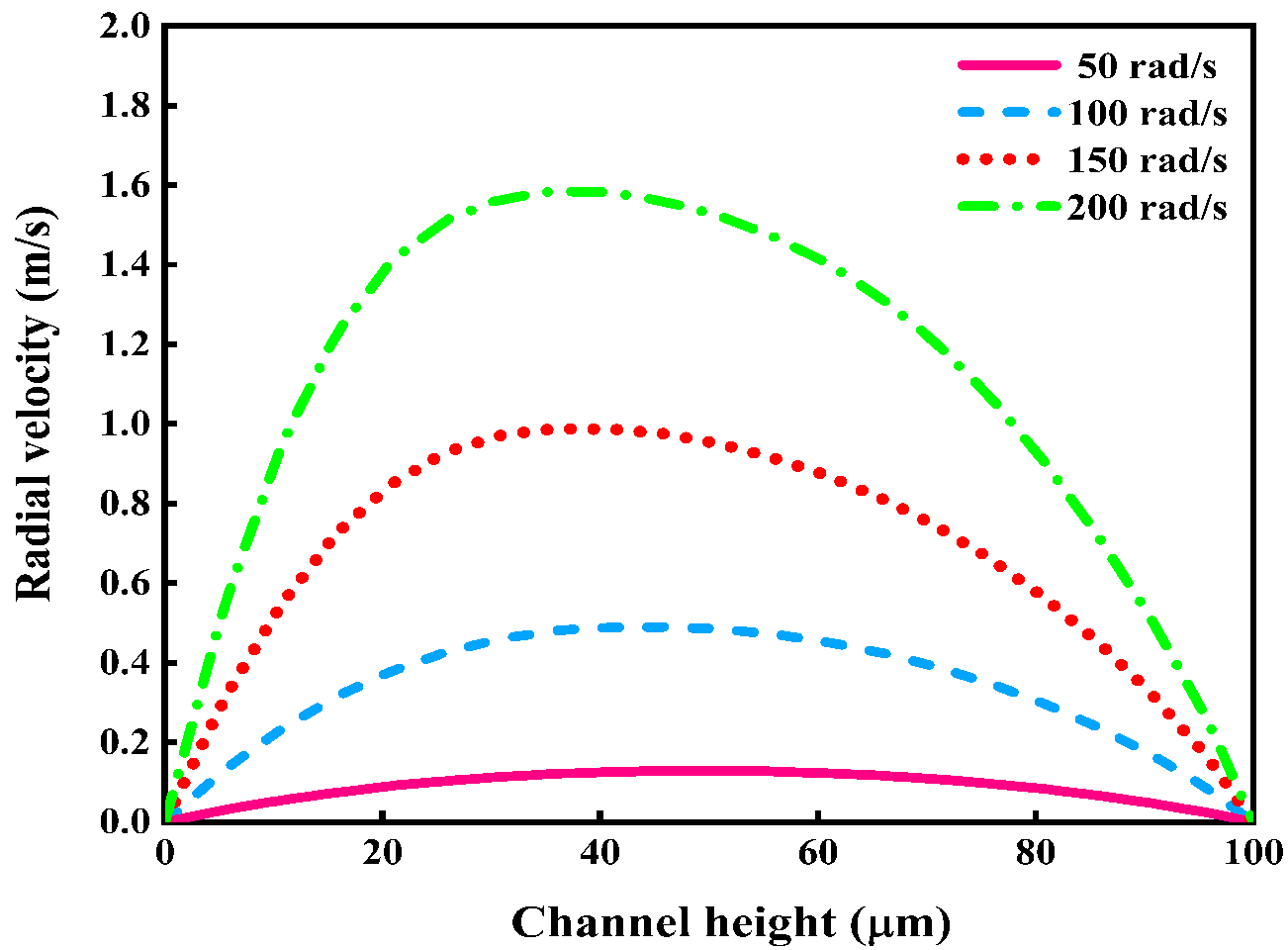

Figure 10. Radial velocity profiles at different angular velocities

3.4.2. Effect of ω on Cell Separation

The fluid flow velocity in the microchannel increases with increasing the amount of ω. Higher angular velocity results in higher forces on the cells; this makes particles be focused and collected in one outlet. On the other hand, a high angular velocity leads to a higher Reynolds number, causing a large pressure drop and possible sample leakage. Figure 11 shows the path lines of particles at different angular velocities in the trapezoidal microchannel. At trapezoidal expansions microchannel, WBC and CTC particles are affected by fully developed inertial efficacy and separated at two different angular velocities (ω =100 rad/s, and 150 rad/s). FC and FCor for fluid driving and the lift and drag forces for lateral migration directly depend on the magnitude of angular velocity. At low angular velocities, such as 50 rad/s, because the radial velocity is low and the inertial effects are not enough, the particles are not separated. On the other hand, over the angular velocity of 150 rad/s, due to the enhancement of FL, all particles (i.e., WBC and CTC) migrate toward outlet 2. A higher angular velocity affects particles with more shear stress, which can cause the damage and death of the biologically important particles.

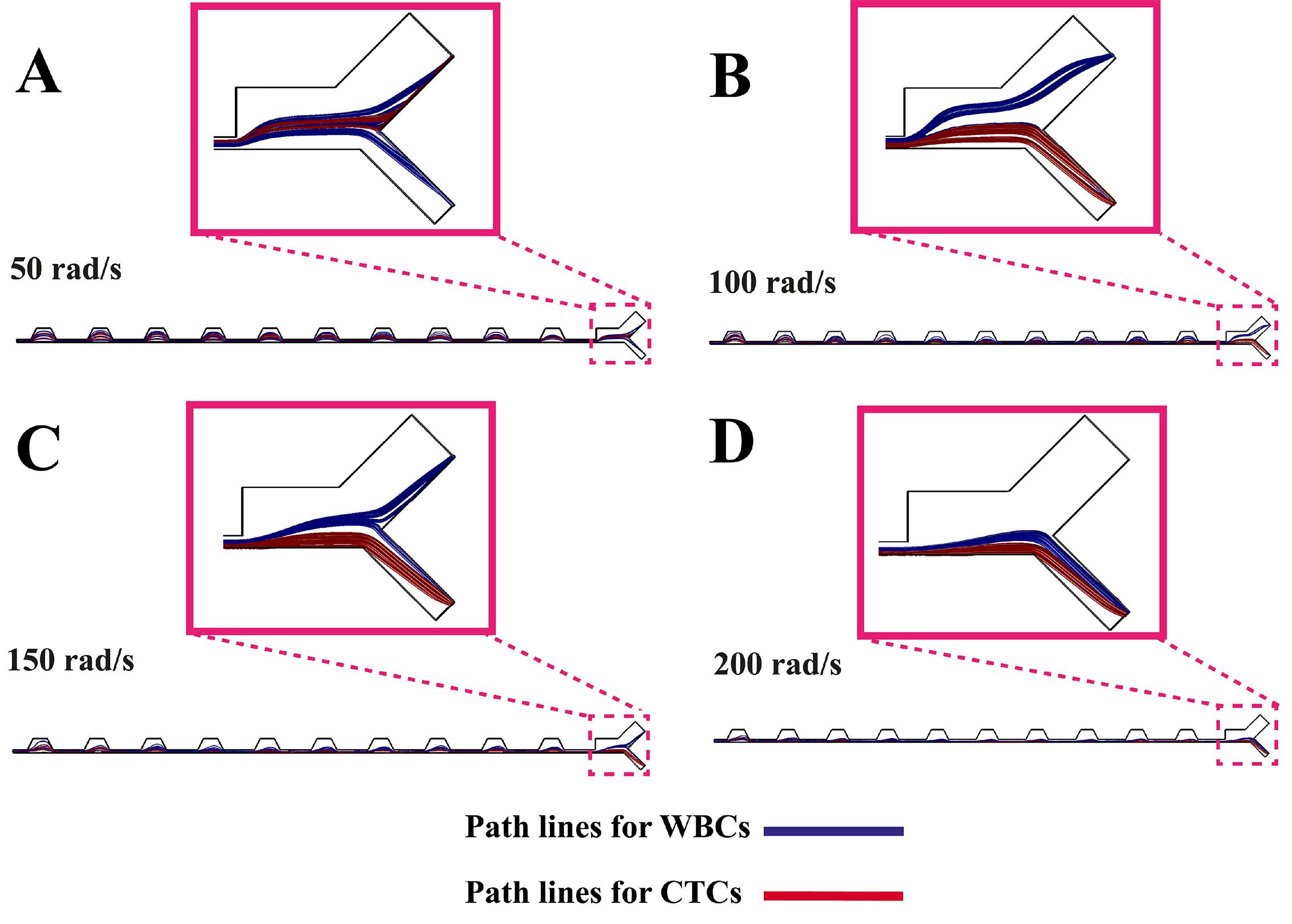

Figure 11. Path lines of the CTCs and WBCs in the separation microchannel and their position at the outlets at different angular velocities; A) 50 rad/s , B) 100 rad/s, C) 150 rad/s, and D) 200 rad/s.

3.4.3. Effect of the Expansion Number on Cell Separation Parameters

The difference between the particle sizes is the separation mechanism of the proposed LOD system. According to Equations 11 and 15, large particles are affected via the FL, while small particles are influenced via FD. It is necessary to determine the expansion numbers needed for separating CTC and WBC particles with high separation efficiency and purity. Therefore, in this system, the isolations of the 10 µM WBCs and 20 µm CTCs were performed in the trapezoidal CEA microchannel by varying the number of expansions in a fixed channel length. A high level of separation efficiency (>90%) was obtained for CTCs with more than 9 expansion numbers. Figure 12 depicts that the best performance of the microchannel (100% efficiency and 95% purity) is achieved for the CTCs by 10 expansion numbers, which provide a 10-mm microchannel length that is 1/3 of the microchannel used by Al-Halhouli ( 27 ) to focus the 10 µm and 5 µm particles.

Figure 12. A) Efficiency, B) Purity

3.4.4. Dean Vortex Formation by Contraction Zone Aspect Ratio

As noticed in the prior sections, the magnitudes and directions of the migration across streamlines are determined by balancing between FL and FD applied to the particles. FD, which is produced by the Dean Vortices, is formed at a certain distance from the microchannel contraction region. The height of the microchannel cross-section directly affects the quality of the Dean Vortices and velocity. Therefore, it changes the particles' equilibrium position by changing the flow velocity and magnitude of the forces applied to the cells. Simulations are performed for different microchannel depths from 80 μm To 140 µm with a 20 µm increment to find the optimal value. Figure 13 illustrates the Dean vortices for these different contraction heights. An increase in the contraction aspect ratio (h/w) boosts the fluid flow velocity and improves the Dean vortices. Improved vortex leads particles to experience various forces based on their size; nonetheless, increasing the channel height affects the maximum shear stress applied on the particles. By considering 100 µm for the microchannel height, the maximum radial velocity in the microchannel is 0.5 m/s with the fully developed profile, producing the maximum shear stress of 10 Pa.

Figure 13. (A-D) Vortices at a distance of 30 µm from the contraction of the trapezoidal microchannel at different depths; A) 80 µm, B) 100 µm, C) 120 µm and D) 140 µm.

Separation Results with Considering the RBCs

To indicate the ability of the proposed platform for CTC separation from whole blood contents, RBCs with an 8 µm diameter are considered. In this regard, simulations were performed to separate the CTCs with 20 µm particle sizes from WBCs and RBCs with 14 µm and 8 µm particle sizes, respectively. A total of 120 particles, including 40 CTCs, 40 WBCs, and 40 RBCs with mentioned diameters, were suspended in the fluid. As can be seen in figure 14, CTCs with 20 µm particle sizes were collected in outlet 2 (lower outlet), while WBCs and RBCs with different sizes were directed into outlet 1 (upper outlet). Red lines represent the CTCs, whereas green and blue ones show the WBC and RBC path lines. Simulation results indicated 100% separation efficiency and 88% purity for CTCs.

Figure 14. Path lines for 20 µm CTCs (red), 14 µm WBCs (green), and 8 µm RBCs (blue)

4. Conclusion

In this study, cells were considered to be rigid with a spherical shape; however, under different forces, they could be deformed and not be complete spheres. Additionally, to simplify the simulations, the number of cells was considered to be equal, which the quantity ratio between CTC and blood cells is normally over 10,000 times. As explained in section 4, in experimental works, due to the incubation of samples, the particle-particle interactions are not considered, which may provide changes in the achieved yields. These obtained simulation results can be used as a guide for future experimental works.

The separation and detection of CTCs have an essential role in cancer treatment. In this study, size-based CTC separation was examined in an LOD system. Inertial lift force, Dean Drag force, and centrifugal forces were considered to change the equilibrium positions of the CTCs and WBCs. Four expansion shapes (i.e., trapezoidal, circular, triangular, and rectangular) were simulated to obtain optimum microchannel geometry. Trapezoidal CEA microchannel represented high separation performance at a low angular velocity, compared to other micro-channels. The main results of this study are summarized as follows:

1. After an investigation of particle separation in the trapezoidal microchannel at four different depths of 80, 100, 120, and 140 µm, it was observed that by increasing the height of the contraction region, Dean Vortex formation improved. Nevertheless, it should be noted that the improvement in Dean Vortices will also increase forces and shear stress that affect the particles.

2. As the disk's rotational velocity increased, several separation patterns were observed at different fluid flow velocities. At low angular velocities, since the radial velocity was low and the inertial effects were not enough, the particles were not separated. However, over the optimum velocity, particles were focused and directed toward a specific outlet.

3. At the best condition, with the maximum radial velocity of 0.5 m/s across the 100-µm channel height, the system achieved 100% separation efficiency and 95% purity for the CTCs, while the maximum shear stress of 10 Pa affected the particles.

4. For whole blood, concerning the average diameter of 8 μm for RBCs, separation was possible with the same efficiency without the need for preparing samples or using the focusing fluid.

Finally, as the main result, these simulations can be used as a guide for future experimental works.
