In silico Design of a Vaccine Candidate for SAR S-CoV-2 Based on Multiple T-cell and B-cell Epitopes

Document Type : Original Articles


1 Department of Biochemistry, McPherson University, Seriki Sotayo, Ogun State, Nigeria

2 Biotechnology Unit, Department of Biological Sciences, Kings University, Odeomu, Nigeria

3 School of Pharmacy and Biomolecular Sciences, Liverpool John Moores University, Liverpool, England


Coronaviruses (2019-nCoV) are large single-stranded RNA viruses that usually cause respiratory infections with a crude lethality ratio of 3.8% and high levels of transmissibility. There is yet no applicable clinical evaluation to assess the efficacy of various therapeutic agents that have been suggested as investigational drugs against the viruses despite their respective supposed hypothetical claims due to their antiviral potentials. Moreover, the development of a safe and effective vaccine has been suggested as an intervention to control the 2019-nCoV pandemic. However, a major concern in the development of a 2019-nCoV vaccine is the possibility of stimulating a corresponding immune response without enhancing the induction of the disease and associated side effects. The present investigation was carried out by predicting the antigenicity of the primary sequences of 2019-nCoV structural proteins and identification of B-cell and T-cell epitopes through the Bepipred and PEPVAC servers, respectively. The peptides of the vaccine construct include the selected epitopes based on the VaxiJen score with a threshold of 1.0 and β-defensinas an adjuvant. The putative binding of the vaccine constructs to intracellular toll-like receptors (TLRs) was assessed through molecular docking analysis and molecular dynamics simulations. The selected epitopes for the final vaccine construct are DPNFKD, SPLSLN, and LELQDHNE as B-cell epitopes and EPKLGSLVV, NFKDQVILL, and SSRSSSRSR as T-cell epitopes. The molecular docking analysis showed the vaccine construct could have favorable interactions with TLRs as indicated by the negative values of the computed binding energies. The constructed immunogen based on the immune informatics study could be employed in the strategy to develop potential vaccine candidates against 2019-nCoV.


Main Subjects

1. Introduction

Coronaviruses are animal and human viruses that usually cause respiratory infections ranging from mild illnesses, such as the common cold and upper respiratory tract infections to severe diseases, including lethal zoonotic infections, like severe acute respiratory syndrome (SARS) ( 1 , 2 ). The current virus pandemic, known asCOVID-19 or 2019-nCoV, is a large single-stranded RNA virus that includes the surface spike glycoprotein, lipid-envelope, membrane proteins, and nucleocapsid ( 3 ).

The virus is transmitted by respiratory drops with a crude lethality rate of 3.8% which is considerably lower than SARS-CoV (10%) and MERS-CoV (40%), but has higher levels of transmissibility and pandemic risk with an effective reproductive number (R) of 2.9, compared to both SARS-CoV (R=1.77) and MERS-CoV (R<1)( 4 - 6 ).

Based on the existing indication, the disease presentation varies ass ome infected individuals are asymptomatic while some generally develop signs and symptoms between the 5th and 6th days after infection ( 6 ). It has been documented that the median time from the onset of the disease to recovery could range from 2 to 6 weeks depending on its severity ( 6 ).

Airborne precautions, such as hand hygiene, masks, and social distancing are recommended across the globe as non-pharmaceutical control measures to limit the spread of the virus. A variety of therapeutic agents, such as chloroquine, niclosamide, glycyrrhizin, and protease inhibitors, have been suggested as investigational drugs due to their antiviral potentials ( 7 , 8 ). Despite the purported hypothetical claims of these investigational drugs, there is still no substantive clinical evaluation to assess the efficacy of the drugs aside from the basic fear of unpronounced toxicity.

The development of a safe and effective vaccine has been suggested as a central intervention measure to control the 2019-nCoV pandemic ( 9 ). Vaccination success stories include the eradication of infectious diseases, such as smallpox, and the reduction of polio and measles ( 10 ). Enjuanes, Dediego ( 11 ), ( 12 - 14 ) performed different studies on vaccine candidates, including inactivated whole virus, virus-like particles, and spike protein preparations for the SARS prevention. The main concern to proceed to humans with a SARS-CoV vaccine is the possible induction of enhanced disease and side effects by an inactivated whole virus ( 15 ). The structural proteins of SARS-CoV may serve as antigens that could elicit the appropriate immunological reaction upon infection ( 16 , 17 ).

The present study identified structural antigenic proteins of 2019-nCoV with their respective neutralizing epitopes. Moreover, it developed a fragment-based vaccine through immunoinformatics which could elicit neutralizing antibodies, be safe by not enhancing viral infection, and be employed as a safe vaccine for experimental studies and clinical trials.

2. Materials and Methods

2.1. Data Retrieval and Structural Analysis

The primary sequence of Glycoprotein, L -protein, Matrix protein, Nucleocapsid protein, Nucleoprotein, and Polymerase in 2019-nCoV were retrieved from the UniProt database ( Antigenicity prediction of the respective structural proteins was carried out through Vaxijen v2.0 with a 0.5 threshold value ( 18 ). The structural protein was selected from each class based on the best antigenic score.

2.2. B-Cell Epitope Prediction and Characterization

The Bepipred server ( was used in linear B-cell epitope prediction. Vaxijen 2.0 server was used for the antigenicity study of chosen epitopes ( 18 ) while their respective hypothetical immunogenicity was predicted through the immunogenicity tool of Immune Epitope Database (IEDB) server ( ( 19 , 20 ). Toxicity was predicted through the ToxinPred server ( ( 21 ).The physicochemical characterization of the respective epitope was predicted using ProtParam Tool on the SIB ExPASy web server ProtParam tool ( using mammalian as the defined organism due to the phylogenetical relationships of mammals with humans ( 22 ).

2.3. T-Cell Epitope Prediction and Characterization

The PEPVAC web server ( was used for the prediction of antigenic major histocompatibility complex(MHC)-Class-I-Restricted T Cell epitopes (9-mer) ( 23 ). Vaxijen 2.0 server was used for the antigenicity study of chosen epitopes while their respective hypothetical immunogenicity was predicted through the immunogenicity tool of the IEDB server ( ( 19 , 20 ). Toxicity was predicted through the ToxinPred server ( ( 21 ). The physicochemical characterization of the respective epitope was predicted using ProtParam Tool on the SIB ExPASy web server ProtParam tool ( using mammalian as the defined organism ( 22 ).

2.4. Estimation of Population Coverage

The human leukocyte antigen (HLA)-alleles distribution among the world population was predicted through the IEDB population coverage analysis tool. This tool is used for theanalysisof the potential cytotoxic T lymphocyte and helper T lymphocyte epitopes as well as their MHC binding alleles ( ( 19 , 20 ).

2.5. Multi-Epitope Vaccine Construct Design

The selected B-cell and T-cell epitopes were respectivelylinked with GPGPG and AAY linkers. A 45-amino-acid-length, β-defensin, was selected as the adjuvant. The amino acid sequence of the adjuvant (GIINTLQKYYCRVRGGRCAVLSCLPKEEQIGKCSTRGRKCCRRKK) was added to the N-terminal of the vaccine construct using EAAAK as the linker.Afterthe addition of the adjuvant and linkers, the final length of the vaccine candidate was 132 residues.

2.6. Secondary Structure Prediction and Structural Modeling of the Vaccine Construct

The self-optimized prediction method with alignmentwas used for the prediction of the secondary structure of thevaccine. The i-TASSER server ( was used in modeling the final subunit vaccine tertiary structure ( 24 ). The predicted model of the vaccine protein was refined through the GalaxyRefine web server ( The structural characterization of the vaccine construct was carried out through Qualitative Model Energy Analysis (QMEAN) ( 25 ) while the Ramachandran plot was obtained using the PROCHECK server ( ( 26 , 27 ).

2.7. Molecular Docking between the Vaccine and TL Receptor

The 3D structure of human toll-like receptors (TLR)-3 and TLR-8 obtained from Research Collaboratory for Structural Bioinformatics (RSCB) with RSCBIDs of2A0Z and 3WN4, respectively, were utilized for further molecular docking studies. The peptide models were docked against TLRs through the HAWKDOCK server tool ( ( 28 ) and their binding potential was alsoanalyzed. Furthermore, the Molecular Mechanics/Generalized Born Surface Area(MM/GBSA)computations were doneto predict thebinding free energy of the receptor–vaccine interaction via the HAWKDOCK server ( The means of the binding scores between the two receptors were compared using the student’s t-test.

2.8. Molecular Dynamics Simulation

The assessment of the binding effects of the TLRs on the molecular dynamics of the vaccine construct wasperformedthrough iMODS, aninternal coordinates normal mode analysis server ( ( 29 ).

3. Results and Discussion

3.1. Data Retrieval and Structural Analysis

The present study focused on the optimization of epitope-based vaccines through computational analyses. The immunogenicity of any vaccine depends on the suitable processing of the antigenic epitopes which are specific immunogenic machinery of the pathogen. Intotal, 14 sequences of COVID-19 structural proteins were retrieved from the UniProt database. In contrast to whole-cell vaccines, epitope-based vaccines could be favorable in clinical trials due to their cost-effectiveness and non-infectious nature ( 30 ). Hypothetically, ORF10 protein, envelope small membrane protein, membrane protein, ORF6 protein, ORF7a protein, ORF8 protein, nucleoprotein, ORF9b protein, and ORF7b protein were predicted to have the highest antigenicity threshold of 0.5 and were selected for subsequent immunoinformatics study (Table 1).

UniProtKB ID Protein Name Antigenicity Score Remark
A0A663DJA2 Hypothetical ORF10 protein 0.7185 Antigen
P0DTC1 Replicase polyprotein 1a (pp1a) 0.4787 Non-antigen
P0DTC2 Spike glycoprotein 0.4646 Non-antigen
P0DTC3 ORF3a protein 0.4945 Non-antigen
P0DTC4 Envelope small membrane protein 0.6025 Antigen
P0DTC5 Membrane protein 0.5102 Antigen
P0DTC6 ORF6 protein 0.6131 Antigen
P0DTC7 ORF7a protein 0.6441 Antigen
P0DTC8 ORF8 protein 0.6502 Antigen
P0DTC9 Nucleoprotein 0.5059 Antigen
P0DTD1 Replicase polyprotein 1ab 0.4624 Non-antigen
P0DTD2 ORF9b protein 0.9060 Antigen
P0DTD3 ORF14 protein 0.4021 Non-antigen
P0DTD8 ORF7b protein 0.8462 Antigen
Table 1. Properties of the selected proteins on UniProt

3.2. Properties of the Selected Epitopes

Sequences of the epitope in the proteins with the acceptable antigenicity were identified through Bepipred and PEPVAC servers and were assumed to be significant in terms of immune response ( 31 , 32 ). The selected B-cell and T-cell epitopes for the final vaccine construction and their corresponding properties are presented in tables 2 and 3.

UniProtKB ID Protein Name Sequence VaxiJen score Immunogenicity score Prediction pI Molecular weight
PODTC2 Nucleoprotein DPNFKD 2.88 -0.09 Non-toxin 4.21 734.83
P0DTD2 ORF9b protein SPLSLN 1.83 -0.18 Non-toxin 5.88 629.79
P0DTD8 ORF7b protein LELQDHNE 1.45 -0.07 Non-toxin 4.14 997.15
Table 2. Properties of the selected B-cell epitopes for the final vaccine construction
UniProtKB ID Sequence VaxiJen score Immunogenicity score Toxicity pI Molecular weight HLA Class I Alleles
P0DTC8 EPKLGSLVV 1.38 -0.19 Non-Toxin 6.35 941.27 HLA-B*53:01,HLA-B*35:01,HLA-B*07:02,HLA-B*54:01,HLA-B*51:01,HLA-B*51:02
P0DTC9 NFKDQVILL 1.17 -0.02 Non-Toxin 6.19 1089.44 HLA-A*02:01,HLA-A*02:02,HLA-A*02:03,HLA-A*02:04,HLA-A*02:05,HLA-A*02:06,HLA-A*68:02,HLA-A*24:02,HLA-B*38:01
P0DTC9 SSRSSSRSR 1.23 -0.52 Non-Toxin 12.31 1009.14 HLA-A*33:01,HLA-A*11:01,HLA-A*31:01,HLA-A*03:01,HLA-A*68:01,HLA-A*66:01
Table 3. Properties of the selected T-cell epitopes for the final vaccine construction

The selected epitopes based on the VaxiJen score with a threshold of 1.0for the final vaccine construct are DPNFKD, SPLSLN, and LELQDHNE listed as B-cell epitopes and EPKLGSLVV, NFKDQVILL, and SSRSSSRSR listed as T-cell epitopes based on the peptides which can be bound to MHC class I molecules. B-cells have been known to play an indispensable role in the antibody responses elicited from diverse infections and vaccinations.However, the up-regulation of MHC antigen presentation through the TLRscould promoteantigen-specific T-cell responses ( 33 ). The sequences were predicted from nucleoprotein and ORF9b protein.

Stimulation of immune response with multiple epitopes could lead to marked synergy in the activation of antigen-presenting cells ( 34 ). The selected epitopes showed an acceptable extent of immunogenicity and no toxicity; these properties could invariably enhance the functionality of the vaccine construct. The molecular weight of the selected epitopes ranges from 629.79 Da to1089.44 Da with good antigenic properties. The isoelectric point prediction revealed that the selected B-cell epitopes were acidic while the selected T-cell epitopes were basic.

3.3. Population Coverage Analysis

The population coverage analysis which computes the fraction of individuals, which was predicted to respond to the set of selected T-cell epitopes, suggested that the selected MHC-Class I covers90.04% of the world population. This information revealed the proper population coverage (Table 4). The highest population coverage based on HLA genotypic frequencies with the assumption of non-linkage disequilibrium between the HLA loci was in East Asia. Moreover, it reached the above-average values in other areas, except in Central America where the lowest coverage was found. This showed minimal complexity in the development of a vaccine with different epitopes ( 35 ). The two highest coverages were found in East Asia where the virus first appeared and Europe where several outbreaks occurred ( 36 ).

Population Coverage a Average Hit b pc90 c
Central Africa 73.21 1.08 0.37
Central America 2.98 0.03 0.1
East Africa 73.16 1.05 0.37
East Asia 94.63 1.77 1.14
Europe 92.69 1.65 1.07
North Africa 80.71 1.26 0.52
North America 91.79 1.63 1.05
Northeast Asia 87.81 1.33 0.82
Oceania 87.78 1.22 0.82
South Africa 71.61 0.99 0.35
South America 82.94 1.22 0.59
South Asia 81.02 1.19 0.53
Southeast Asia 87.46 1.28 0.8
Southwest Asia 79.39 1.2 0.49
West Africa 78.87 1.24 0.47
West Indies 88.68 1.55 0.88
World 90.04 1.51 1
Mean±SD 79.10± 20.24 1.25±0.37 0.67±0.29
Table 4. World population coverage of the selected T-cell epitopes

3.4. Physicochemical Properties of the Vaccine Construct

The selected antigenic B-cells and T-cells epitopes were considered for the construction of a multiepitope vaccine using β-defensin as the adjuvant (Figure 1). The final vaccine constructs contained 130 amino acid residues. The results of the predicted antigenicity and physicochemical characterization of the final vaccine construct are presented in table 5. The physicochemical features and efficiency of any peptide were determined by the unique sequence of the peptide ( 37 , 38 ). The construct had a molecular weight of 13875.91 Da with good antigenic properties based on the VaxiJen score with a threshold of 0.5. This property revealed the probable immunogenic sufficiency of the construct and its potential to stimulate a response against pathogenic epitopes.

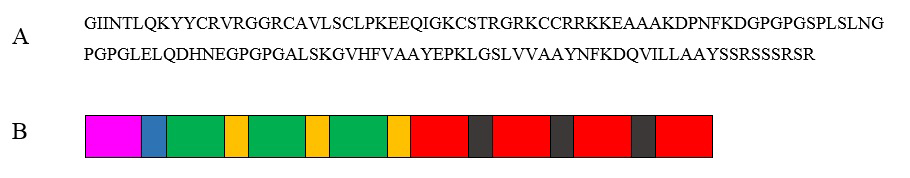

Figure 1.(A) Sequence and (B) graphical presentation of the vaccine construct consisting of an adjuvant (purple) at the N-terminal end that is linked tothe whole multi-epitope sequence through EAAAK linker (blue). B-cell and T-cell epitopes are fused with the help of GPGPG (yellow) and AAY (brown), linkers, respectively.

Molecular weight (Da) Antigenicity Theoretical pI Half-life (h) Instability index Aliphatic index Grand average of hydropathicity index
13875.91 0.6403 9.66 30 43.04 72.08 -0.496
Table 5. Antigenicity and physicochemical properties of the vaccine construct

The theoretical isoelectric point value indicatedthat the vaccine was basic. The estimated half-life in mammalian reticulocytes through in vitro investigation was approximately 30 h. However, the construct had a high instability index. The aliphatic index indicated the stability of the construct over a wide range of temperatures. The hydrophilicity of the construct was due to the negative grand average of hydropathicity.

3.5. Secondary and Conformational Structures of the Designed Vaccine

Moreover, computational studies were performed on the secondary and conformational structures of the designed vaccine. The predicted secondary structure indicated that alpha-helix,extended strand,beta-turn,and random coil percentageswere16.92%, 26.15%, 6.15%, and 50.77%, respectively, with 22, 34, 8, and 66 amino acid residues, respectively (Figure 2). The GalaxyRefine server refined i-TASSER predicted tertiary structure leading to an increase in the number of residues in the favored region.

Figure 2.(A) Secondary structure of the vaccine construct revealing alpha helix (blue), extended strand (red), beta-turn (green), and random coil (yellow); (B) tertiary structure of the multi-epitope vaccine after refinement.

The refined best model with the highest percentage of residues in the most favored region in the Ramachandran plot and SWISSQMEAN was selected for further studies (Figure 3). The Ramachandran plot which presents the most favorable combinations of phi-psi values showed that a total of 103 amino acids were non-glycine and non-proline residues. Moreover, 63(61.2%), 23(22.3%), 5(4.9%), and 12 (11.7%) residues were found in the most favored regions, additionally allowed regions, generously allowed regions, and disallowed regions, respectively. The glycine (shown as triangles) and proline residues were 16 and 10, respectively. The computed QMEAN score was -7.86.

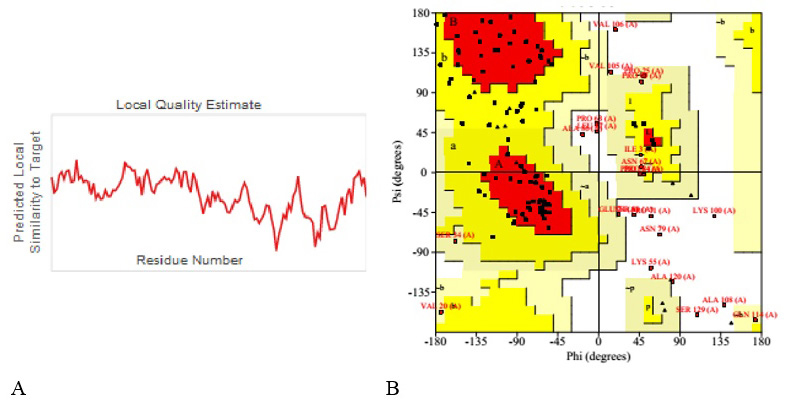

Figure 3. Validation of the tertiary structure of the vaccine constructs through (A) Qualitative Model Energy Analysis and (B) the Ramachandran plot.

3.6. Molecular Docking Analysis

The computational binding affinities through molecular docking studies were carried out through the HAWKDOCK server. The TLRs are single-pass membrane-spanning receptors that play an essential role in the mediation of the immune system ( 39 ). They recognize structurally conserved pathogen-associated molecular patterns on a range of pathogens, including viruses leading to the induction of inflammatory reactions mediated via the nuclear factor-κ Bactivation and by interferon.

The TLRs, such as TLR3 and TLR8, located in endosomal compartments have been identified as mediating recognition of viral proteins. They promote the TLR-dependent antiviral immunity leading to innate immune activation as the first line of host defense as well as in adaptive immunity ( 39 , 40 ).The result of the molecular docking analysis using the HAWKDOCK server revealed that the energy scores for different models and the mean of the first five models with the lowest energy scores were computed as the mean score for each interaction.

The accuracy of the ranking was assessed through MM/GBSA free energy computation through an approximation of the solvent electrostatic contribution in the Poisson-Boltzmann model ( 41 , 42 ). The obtained results indicated that the reliability in the methods employed with the interaction of the construct with TLR8 has the highest affinity as shown by the least binding energy value between the vaccine construct and the TLR (Table 6). However, model 1 with the lowest HAWKDOCK score was chosen as the best-docked complex of each interaction (Figure 4).

Hawkdock Score -5282.35±141.29 -6709.91±255.12*
Molecular Mechanics/Generalized Born Surface Area -21.12±0.30 -51.23±0.13*
Table 6. Mean binding free energy (kcal/mol) of the complexof the vaccine construct with TLR-3 and TLR-8

Figure 4. Docked complex of vaccine constructs with (A) toll-like receptor 3 (blue) and (B) toll-like receptor 8 (purple).

The interactions of the vaccine construct with TLR3 and TLR8 could activate the TLRs. This could subsequently lead to the recruitment of adaptor proteins, such as myeloid differentiation primary response 88. It could activate the nuclear factor-κB and interferons production through sequential activation of IL-1 receptor-associated kinase family kinases, an inhibitor of κB kinase, and mitogen-activated protein kinase.

This activation cascade could lead to an immune response against the molecular patterns of the vaccine construct ( 39 ).

3.7. Molecular Dynamics Simulation

Molecular dynamics study is critically essential for checking the stability of the protein-protein complex in any in silico analysis. Protein stability can be determined by comparing essential protein dynamics withtheir normal modes ( 43 ). The stability and flexibility of the docked complexes were assessed through the normal mode analysis using the iMODS server. The results showed thatthe vaccine construct could modulate the TLR3 and TLR8 structures (Figure 5).

Figure 5. Molecular dynamics simulation of (A) toll-like receptor 3, (B) the docked complex of Toll-like receptor 3 with the vaccine construct, (C) toll-like receptor 8, and (D) toll-like receptor 8 with the vaccine construct showing the (I) main-chain deformability, (II) experimental B-factor, (III) eigenvalues, (IV) variance associated to each normal mode, (V) covariance matrix, and (VI) The elastic network model.

The binding of the vaccine constructs decreased the capability of each of the receptors to deform at each of its residues as shown by the main-chain deformability graph and the experimental B-factor (Figure 5I and II) ( 44 ). However, it had a varying effect on the eigenvalues which represented the motion stiffness of the receptors. The eigenvalues were 8.74×10-6 and 8.77×10-5 for TLR3 and TLR8, respectively, and 1.50×10-5 and 9.72×10-5 for the complexes of the vaccine construct with TLR3 and TLR8, respectively (Figure 5 III).

This showed that the interaction of the vaccine constructs increased the energy required to deform the TLR3. However, it decreased the eigenvalue of TLR8 which led to easier deformation. Moreover, the computed eigenvalues had aninverse relationship with the results of the variance associated with each normal mode of the unbound receptors and the complexes (Figure 5 IV).

Furthermore, the covariance matrix, which indicated coupling between pairs of residues within the receptors, showed that the vaccine constructs lowered the correlation motions in the TLRs as indicated by a decline in the strength of redness (Figure 5 V). Similarly, the elastic network model showed that the interaction of the vaccine constructs reduced the stiffness of the springs that connected the atoms (Figure 5 VI) ( 29 ). The binding of vaccine constructs to the TLRs on antigen-presenting cells could lead to the activation of TLRs and induce an inflammatory response that could elicit acquired immunity ( 45 ).

4. Conclusion

The presentation of this epitope-based vaccine construct based on the antigenic epitopes of the structural proteins of 2019-nCoV could be harnessed to activate TLR3 and TLR8 signaling. This could therapeutically elicit appropriate vaccine-specific immunological responses from2019-nCoV infection.

Authors' Contribution

Study concept and design: B. J. O., I. F. O. and C. O. O.

Acquisition of data: B. J. O., I. F. O. and C. O. O.

Analysis and interpretation of data: B. J. O.

Drafting of the manuscript: B. J. O. and I. F. O.

Critical revision of the manuscript for important intellectual content: B. J. O., I. F. O. and C. O. O.

Statistical analysis: None

Administrative, technical, and material support: B. J. O., I. F. O. and C. O. O.

Conflict of Interest

The authors declare that they have no conflict of interest.

Grant Support

The current research was not financially supported by any institute or person.
